Function Dedicated Panel Meters, Bargraphs and Controllers

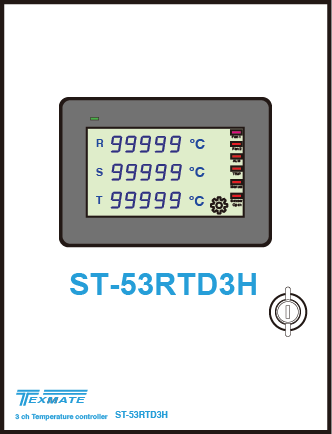

ST-53RTD3H
Base Price Call for Price
Temperature controller for 3 Phase Dry Transformer
Features:
4.3", 480x272 resolution color TFT LCD display with touch screen
Indicate 3 phase transformer temperatures simultaneously
Internal 128MB flash memory for data logging
External USB flash drive with storage options up to 64GB
3 channel temperature graph plotter and history record, exportable to Excel format
Measurement range for each channel: 0.0°C ~ 300.0°C
Up to 3 channel Pt100 inputs with 3 wires
RS485 Serial communication output
Configurable and programmable through an external PC
Programmable 4 set points from 0 to 300 °C for results from any phase transformer temperatures
Control output- temperatures from any channel reaches programmed setpoints, can turn on fans, set alarms, and trip relays
Programmable 32 point linearization tables for each channel
Hysteresis control for each channel Relay output
Auto detects RTD Sensor open circuit
Automatic and manual control for fans
Auto protection from over current for fan outputs
Specifications:
Accuracy: +/- 1% FS
Resolution: 0.1 °C
2 Relay contact output for fans : capacity 15A 250 VAC
2 Relay contact output : capacity 10A 250 VAC
Auto-sensing high voltage power supply - 85 ~ 265VAC or 95~370VDC
Power consumption: 10 Watt max.11 Watt
Flash mount metal case with locking front door
Meter Dimensions : 260mm (H) x 196 mm (W) x90 mm (D)
Panel cutout size : 230mm (H) x 180 mm (W)
Operating temperature : 0 ~ 70 °C
Operating humidity : 30 ~ 85% (non condensing)
Product Information
Inputs
0
Analog Outputs
0
Serial Outputs
0
Relay Outputs
0
Special Options &
Custom Calibration
0
Accessories
0
Quantity
Purchase Type
Fully Configured Meter
Parts Only (No Meter Base)
