Products

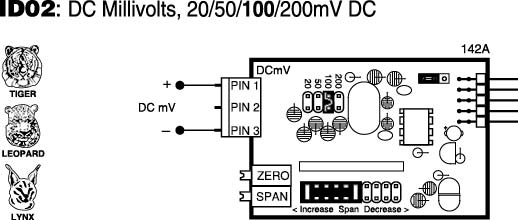

(ID02)
Input Signal Module
DC-Millivolt, 20/50/
100
/200mV DC (module included in the meter base price)
