Products

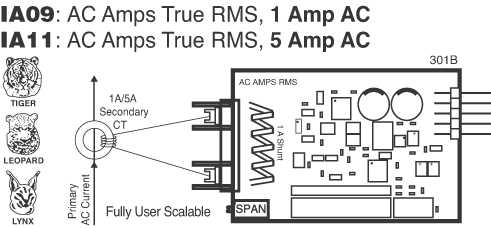

(IA11)
Input Signal Module
AC-Amps True RMS,
5 Amp AC
(module included in the meter base price)
