Name: FB-B50
Brand: Texmate
SKU: FB-B50
Price: 392 USD
Availability: InStock

# Texmate BABA Compliant. Built to Last. Quick delivery. Founded in 1976, Texmate designs, manufactures and distributes a wide range of intelligent, high quality, made-in-the-USA, IoT-ready, UL certified and CE/RoHS compliant panel and DIN rail mount indicators, bargraphs, process controllers, and micro OITs for fifty years. ## Product Catalog ### I-Series Meters BDD-652: Magnetostrictive Start/Stop Controller Case: 144x36mm 9/64 DIN (9/64) Compatible modules: AIC, AIV, IA07, IA12, ISM1, OR12, OR34, OR81, OR91, S2, S4, S5, S6, S8, S9 DI-50-FLOW: Flow / Rate Totalizer Price: $464, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA07, IA12, IF10, IP02, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S4, S8 DI-50-MAS1: Manual Auto Station with Bumpless Transfer 1 setpoint, 96x48mm, 5 Digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Custom Meter Program #: CMP-00079 Price: $769, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, AIY, IA07, IA12, ID01, IF10, IP01, IP02, S1 DI-50-MAS2: Manual Auto Station with Bumpless Transfer 2 setpoints, 96x48mm, 5 Digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Custom Meter Program #: CMP-00193 Price: $769, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, AIY, IA07, IA12, ID01, IF10, IP01, IP02, OR12, S1, S6 DI-50-MS: DI-50 controller with easy-to-use manually adjusted analog 4-20mA or 0 to 10V output.Standard high voltage AC/DC power supply 85-265V AC or 95-370V DC.Optional low voltage AC/DC power supply 18-48V AC or 10-72V DC.No inputs are needed.Digital value shown on display is proportional to the scaled output and is adjusted directly through the front panel to ensure precise and repeatable operation. Price: $514, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, AIY, S1 DI-50-POWER: DI-50-POWER is based on the powerful DI-50E meter IW04/05 Single Phase Power input module. This power meter controller can perform many common AC functions, including • Power for single-phase 2-wire and single-phase 3-wire systems. • RMS Voltage for both line-to-line and line-to-neutral systems. •RMS current 1 amp or 5 amp CTs. Power Factor (Cos ø). This controller also can convert kW to kW hrs and amps to amp hrs using its dual totalizers and resolve the zero crossing detector line frequency to 3 decimal places.DI-50-POWER has a 5-digit display and six programmable setpoints (with optional relay outputs). It is configured to display the value of Watts and Volts, Amps, and Hertz by pressing the up arrow or down arrow button. More custom functions can also be programmed into the display. Setpoints and relays can be used to alarm the user and/or trigger other equipment when certain values have been reached or exceeded. Size: ⅛ DIN 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"). Price: $476, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA07, IA12, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-503-POWER: A powerful, intelligent, 5-digit, 3-display, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Programmable Meter Controller (PMC) Price: $576, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA07, IA12, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-503E: 96x48mm, Tiger, 5 Digit x 3 displays, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), E Version Price: $489, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-503MAS: Triple Display Bumpless Auto Manual StationThe station receives a 4 to 20mA input signal and provides an automatic and manual analog control output of an isolated 4 to 20mA signal to PLCs, process controllers, speed controllers, and actuated devices. 96x48mm, 5 Digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Custom Meter Program #: CMP-00243 Price: $726, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-503T: 96x48mm, Tiger, 5 Digit x 3 displays, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), T Version Price: $576, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50E: The DI-50E and <a href="/meter/DI-50T">DI-50T</a> are Texmate's flagship line of programmable meter controllers, able to add mid-level automation functions without a full PLC, or as a retransmission/control point in a larger SCADA system. The DI-50E can take practically all input modules Texmate produces (see configurator for details) and can track six setpoints w/ extra special functions such as latching, deviation, hysteresis, tracking, register resets, etc., fire relays, retransmit and/or produce analog outputs, auto-zero, tare/calibrate/compensate through front push buttons, track peak and valley, and has an internal real time clock and data logging options. DI-50E meters can be configured by software through our Configuration Utility (free, see Downloads) and connect to your computer via our programming S1 module. All technical details are available through our manual. The E variant does not feature custom macro programming; if you'd like a macro installed or to develop your own, see the <a href="/meter/DI-50T">DI-50T</a>. Price: $416, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50E-PROCESS: Programmable Meter Controller (PMC), 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 5 Digit, Price: $418, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA07, IA12, ID01, ID05, IP01, IP02, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50EAN6: 96x48mm, Tiger, 5 Digit, 6 Annunciators, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), E Version Price: $506, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50EB51: 96x48mm, Tiger, 5 Digit, 51 Segment bargraph, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), E Version Price: $543, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50EB51H: Programmable Meter Controllers, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Tiger, 5 Digit, 51 Segment bargraph, E Version Price: $562, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50T: The DI-50T and <a href="/meter/DI-50E">DI-50E</a> are Texmate's flagship line of programmable meter controllers, able to add mid-level automation functions without a full PLC, or as a retransmission/control point in a larger SCADA system. The DI-50T can take practically all input modules Texmate produces (see configurator for details) and can track six setpoints w/ extra special functions such as latching, deviation, hysteresis, tracking, register resets, etc., fire relays, retransmit and/or produce analog outputs, auto-zero, tare/calibrate/compensate through front push buttons, track peak and valley, and has an internal real time clock and data logging options. DI-50T meters can be configured by software through our Configuration Utility (free, see Downloads) and connect to your computer via our programming S1 module. All technical details are available through our manual. The T variant features custom macro programming options; please contact us for details if you'd like more advanced automation or functionality. Price: $519, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50TAN6: 96x48mm, Tiger, 5 Digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 6 Annunciators, T Version Price: $616, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50TB51: 96x48mm, Tiger, 5 Digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 51 Segment Bargraph, T Version Price: $567, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-50TB51H: Programmable Meter Controllers, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Tiger, 5 Digit, 51 Segment Bargraph, T Version Price: $607, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-602AE: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 6 Digit x 2 Display, LED, E Version Price: $652, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-602AT5C: Programmable Meter Controller - Two 6 Digit 0.39" Alphanumeric LED Displays in a 1/8 DIN Case, 96x48mm Price: $693, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-602MAS: Manual Auto Station with Bumpless Transfer. Two designated buttons to swiftly switch between Auto input mode and Manual output control mode.Two 6-digit 0.39” Alphanumeric LED Displays to display value and mode clearly. 1/8 DIN, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Custom Meter Program #: CMP-00181 Price: $945, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, AIY, IA07, IA12, ID01, IF10, IP01, IP02, S1 DI-60AE: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Tiger, 6 Digit, Alphanumeric, E Version Price: $620, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-60AT: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Tiger, 6 Digit, Alphanumeric, T Version Price: $694, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-60AT5C: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Tiger, 6 Digit, Alphanumeric, 5 Controls, T Version Price: $711, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-60E: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Tiger, 6 Digit, E Version Price: $511, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-60T: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Tiger, 6 Digit, T Version Price: $576, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-60XE: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 6 digit, LCD display, E version Price: $573, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-60XT: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 6 digit, LCD display, T version Price: $637, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-802XAE: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 8 digit x 2 display LCD Alphanumeric, E version Price: $700, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 DI-802XAT: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 8 Digit x 2 Display LCD Alphanumeric, T version Price: $760, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 FI-B101D50E: 144x36mm (5.67"x1.42"), Tiger, 101 Segment, 5 Digit programmable Bargraph controller, microPLC, E Version Price: $543, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, R12, R14, R2S2, R4S2, S2, S4, S5, S6 FI-B101D50T: 144x36mm (5.67"x1.42"), Tiger, 101 Segment, 5 Digit programmable Bargraph controller, microPLC, T Version Price: $626, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IPT1, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, R12, R14, R2S2, R4S2, S2, S4, S5, S6 FI-BD-MAS: Manual Auto Station with Bumpless Transfer, 144x36mm (5.67"x1.42"), 5 Digit programmable Bargraph controller, microPLC Price: $876 Compatible modules: ADC, ADV, AIC, AIV, AIY, IA07, IA12, ID01, IF10, IP01, IP02, S4, S6 GI-50E: Programmable Meter Controller, 144x72mm (9/32 DIN), Tiger, 5 Digit 1" (25.4mm) LEDs, E Version Price: $761, Case: 144x72mm 9/32 DIN (9/32), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, R12, R14, R212, R2S4, R414, R4S4, S2, S4, S5, S6 GI-50EB101: Programmable Meter Controller, 144x72mm, Tiger, 101 Segment Bargraph, 5 Digit 1" (25.4mm) LEDs, E Version Price: $934, Case: 144x72mm 9/32 DIN (9/32), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, R12, R14, R212, R2S4, R414, R4S4, S2, S4, S5, S6 GI-50T: Programmable Meter Controller, 144x72mm (9/32 DIN), Tiger, 5 Digit 1" (25.4mm) LEDs, T Version Price: $812, Case: 144x72mm 9/32 DIN (9/32), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, R12, R14, R212, R2S4, R414, R4S4, S2, S4, S5, S6 GI-50TB101: Programmable Meter Controller, 144x72mm, Tiger, 101 Segment Bargraph, 5 Digit 1" (25.4mm) LEDs, T Version Price: $975, Case: 144x72mm 9/32 DIN (9/32), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISM1, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, R12, R14, R212, R2S4, R414, R4S4, S2, S4, S5, S6 LVDT-100: 5-digit LED display, high performance programmable single channel Positioning and Displacement controller for applications using LVDT (Linear Variable Differential Transformer) inputs. 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Custom Meter Program #: CMP-00050 Price: $609, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA07, IA12, ISL1, ISL2, OR11, OR12, OR32, OR34, OR54, S1, S2, S4, S8 LVDT-200: 6-digit alphanumeric LED display, high performance programmable dual channel Positioning and Displacement controller for applications using LVDT (Linear Variable Differential Transformer) inputs. 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Custom Meter Program #: CMP-00052 Price: $844, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA07, IA12, ISL1, ISL2, OR11, OR12, OR32, OR34, OR54, S1, S2, S4, S8 SG-100: Weighing, Load Cell Controller, 96x48mm, Tiger, 6 Digit, Alphanumeric, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Custom Meter Program #: CMP-00154 Price: $844, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IA07, IA12, ISS3, ISS4, OR12, OR34, OR81, OR91, S2, S4, S5, S6, S8, S9 TD5300: Magnetostrictive Start/Stop Controller Price: $577 Compatible modules: AIC, AIV, IA07, IA12, ISM1, OR12, OR34, OR81, OR91, S2, S4, S5, S6, S8, S9 TI-500: A powerful, smart, Programmable Micro PLC with variety choices of outputs, input signal conditioning and advanced software features for monitoring, measurement, control and communication applications. UL Listed, RoHS compliant. DIN Rail mounted. Price: $435, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR02, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT2, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 TI-501: A powerful, smart, 5-digit, 1-display Programmable Micro PLC with variety choices of outputs, input signal conditioning and advanced software features for monitoring, measurement, control and communication applications. UL Listed, RoHS compliant. DIN Rail mounted. Price: $465, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR02, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT2, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 TI-502: A powerful, smart, 5-digit, 2-display Programmable Micro PLC with variety choices of outputs, input signal conditioning and advanced software features for monitoring, measurement, control and communication applications. UL Listed, RoHS compliant. DIN Rail mounted. Price: $487, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR02, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT2, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 TI-503: A powerful, smart, 5-digit, 3-display Programmable Micro PLC with variety choices of outputs, input signal conditioning and advanced software features for monitoring, measurement, control and communication applications. UL Listed, RoHS compliant. DIN Rail mounted. Price: $510, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ADC, ADV, AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA12, IA3V, IC02, IC03, ID01, ID02, ID03, ID04, ID05, ID06, ID07, ID08, ID09, IDC1, IDD1, IDD2, IDD3, IDD4, IDD5, IDD6, IDF2, IDP1, IDP2, IDP3, IDS3, IDT1, IDT2, IDT3, IDT4, IDT6, IF06, IF10, IGYX, IGYY, IGYZ, IH01, IH02, IP01, IP02, IP03, IP06, IP07, IP08, IP09, IP10, IQD1, IQD2, IQP1, IQT2, IQT4, IQT5, IR01, IR02, IR03, IS01, IS02, IS03, IS04, IS05, IS06, ISD1, ISD2, ISD3, ISD4, ISD5, ISD6, ISD7, ISD8, ISD9, ISDA, ISDB, ISL1, ISL2, ISR1, ISR2, ISR3, ISR4, ISS1, ISS2, ISS3, ISS4, ISS5, ISS6, ISS7, ISS8, ISS9, ISSA, ISSB, ISSC, ISSD, IST1, IST2, IST3, IST4, IST5, IST6, IST7, IST8, IT01, IT02, IT12, IT13, ITD1, ITD2, ITP1, ITT1, ITT2, ITT3, ITT4, ITT7, ITT8, ITTC, ITTE, ITTF, ITTG, IW03, IW04, IW05, OR12, OR14, OR23, OR25, OR32, OR34, OR46, OR54, OR62, OR65, OR72, OR81, OR82, OR91, S1, S2, S3, S4, S5, S6, S8, S9 ### L-Series Meters BL-40: 96x24mm, Meter Controller, Red or Optional Green or Super bright 4 Digit LED in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, IS05, IS06, OIC, OIV, R2 BL-40-RTD: A smart Temperature Controller/Transmitter for J, K, R, and T type Thermocouple and RTD inputs, 96x24mm, 4 Digit 0.56" LEDs in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IT11, OIC, OIV, R2 BL-40-TC: A smart Temperature Controller/Transmitter for J, K, R, and T type Thermocouple and RTD inputs, 96x24mm, 4 Digit 0.56" LEDs in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IT10, OIC, OIV, R2 BL-40PSF: 96x24mm, Panel Meter with programmable scale factor and offset with isolated 4 to 20 mA output retransmission capability for measurement and control applications, Red or Optional Green or Super bright 4 Digit LED in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, IS05, IS06, OIC, OIV, R2 BL-40RPM: 96x24mm, RPM Meter, Red or Optional Green or Super bright 4 Digit LED in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IF05, OIC, OIV, R2 BL-B51D40: The BL-B51D40 is a compact L-series bargraph that features a 51-segment bargraph display and a four-digit numeric display. It features four programmable setpoints that can be used with an optional relay output board, along with options for analog signal retransmission (4-20mA, 0-10V). Its small size factor makes it especially suitable for embedded control panels. It is able to measure AV/DC voltage and amps, pressure, process inputs, resistance, and temperature. Price: $299, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, OIC, OIV, R2 CL-B101D40: Smart switchboard style 101 segment Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and four fully programmable set points for monitoring, measurement, and control applications. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IA05, IA06, IA07, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40-ACA: Smart switchboard style 101 segment AC Amp Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and four fully programmable set points for monitoring, measurement, and control applications. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IA09, IA11, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40-ACV: Smart switchboard style 101 segment AC Volt Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and four fully programmable set points for monitoring, measurement, and control applications. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IA06, IA07, IA12, IA3V, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40-DCA: Smart switchboard style 101 segment DC Amp Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and four fully programmable set points for monitoring, measurement, and control applications. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, ID02, ID04, ID09, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40-DCV: Smart switchboard style 101 segment DC Volt Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and four fully programmable set points for monitoring, measurement, and control applications. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, ID01, ID05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40-RTD: Smart switchboard style 101 segment Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and RTD input in a switchboard style case. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IT11, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40-TC: Smart switchboard style 101 segment Tricolor or Mono-color digital bargraph with four 0.56" LED digits display controller and four fully programmable set points for J, K, R, and T type thermocouples input in a switchboard style case. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IT10, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40HZ: Smart 101 segment, 4 digit LED Tricolor or Mono-color digital line frequency / rate bargraph controller with four fully programmable set points in a switchboard style case for monitoring, measurement, and control applications. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IF05, IF06, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40PS: Smart 101 segment, 4 digit LED Tricolor or Mono-color digital bargraph controller with Programmable Scale Factor input signal scaling and four fully programmable set points in a switchboard style case for monitoring, measurement, and control applications. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IA05, IA06, IA07, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40RPM: Smart 101 segment, 4 digit LED Tricolor or Mono-color digital bargraph controller with four fully programmable set points in a switchboard style case for RPM Measurement. Price: $495, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: AIC, AIV, IF05, OR12, OR15, OR23, OR25, OR32, OR34, OR54, OR62 DL-40-TC: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Temperature Meter, Red or Optional Green or Super bright 4 Digit LED in a 1/8 DIN Case Price: $246, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IT10, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254 DL-40JANUS: The DL-40JANUS programmable panel meter combines the functionality of our old DL-40 and <a href="/meter/DL-40PSF">DL-40PSF</a>, allowing rescaling with or without an external signal source and features a switchable program lock. Optional Modbus RTU RS-485 serial (new) or analog and up to six relays output for measurement and control applications in a 1/8 DIN case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $284, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IGYZ, IP01, IP02, IP03, IP07, IPT1, IR03, IR05, IS01, IS02, IS04, IS05, IS06, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254, S485 DL-40PSF: Replaced by <a href="/meter/DL-40JANUS">DL-40JANUS</a>. 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Panel Meter with programmable scale factor and offset with isolated 4 to 20 mA output retransmission capability for measurement and control applications, Red or Optional Green or Super bright 4 Digit LED in a 1/8 DIN Case Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, IS05, IS06, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254 DL-40RPM: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), RPM Meter, Red or Optional Green or Super bright 4 Digit LED in a 1/8 DIN Case Price: $250, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IF05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254 FL-B101D40: The FL-B101D40 is a combination bargraph and numeric display with optional control functionality through user-selected output modules. The bargraph has 101 segments with options for horizontal or vertical displays and center zeroing, while the numeric display can display between -1999 to 9999 counts. Both bargraph and numeric display have a wide variety of color options and can be chosen distinctly from one another. The meter itself has four programmable setpoints with adjustable hysteresis and can trigger up to four relays once the setpoints are reached; the first setpoint can use delay-on-make and delay-on-break for automatic pump control functionality. NOTE: Texmate offers various versions of the FL-B101D40 with suffixes (ex. "FL-B101D40-RPM"); these are the same base model as the FL-B101D40 and take the exact same input modules as the base meter. We offer suffixed models to assist customers with distinguishing between visually identical meters, especially if they're purchasing mixed lots of the same base model. Price: $347, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IS01, IS02, IS04, IS05, OIC, OIV, R12, R14 FL-B101D40-HZ: The FL-B101D40 is a combination bargraph and numeric display with optional control functionality through user-selected output modules. The bargraph has 101 segments with options for horizontal or vertical displays and center zeroing, while the numeric display can display between -1999 to 9999 counts. Both bargraph and numeric display have a wide variety of color options and can be chosen distinctly from one another. The meter itself has four programmable setpoints with adjustable hysteresis and can trigger up to four relays once the setpoints are reached; the first setpoint can use delay-on-make and delay-on-break for automatic pump control functionality. The FL-B101D40-HZ is intended for measuring low volt frequency or line frequency (60-600V AC, UL listed) via the IF05 and IF06 input modules. Datasheets for the IF05 are available in the configurator. Price: $348, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IF05, IF06, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FL-B101D40-RPM: The FL-B101D40-RPM is a combination bargraph and numeric display with optional control functionality through user-selected output modules. The bargraph has 101 segments with options for horizontal or vertical displays and center zeroing, while the numeric display can display between -1999 to 9999 counts. Both bargraph and numeric display have a wide variety of color options and can be chosen distinctly from one another. The meter itself has four programmable setpoints with adjustable hysteresis and can trigger up to four relays once the setpoints are reached; the first setpoint can use delay-on-make and delay-on-break for automatic pump control functionality. The RPM model is specifically intended for measuring RPM (via 0-20VDC or 0-30V AC input w/ 24V exc for either) through the IF05 input module. Price: $348, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IF05, OIC, OIV, OR12, OR14 FL-B101D40-RTD: The FL-B101D40 is a combination bargraph and numeric display with optional control functionality through user-selected output modules. The bargraph has 101 segments with options for horizontal or vertical displays and center zeroing, while the numeric display can display between -1999 to 9999 counts. Both bargraph and numeric display have a wide variety of color options and can be chosen distinctly from one another. The meter itself has four programmable setpoints with adjustable hysteresis and can trigger up to four relays once the setpoints are reached; the first setpoint can use delay-on-make and delay-on-break for automatic pump control functionality. The FL-B101D40-RTD is intended for RTD measurement through the IT11 input module with a 100Ω Pt. Selectable 3 or 4-wire input. Users can select between °C/°F and a 1° or 0.1° resolution display. Decimal point selection is done through the meter itself. Price: $348, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IT11, OIC, OIV, R12, R14 FL-B101D40-TC: The FL-B101D40 is a combination bargraph and numeric display with optional control functionality through user-selected output modules. The bargraph has 101 segments with options for horizontal or vertical displays and center zeroing, while the numeric display can display between -1999 to 9999 counts. Both bargraph and numeric display have a wide variety of color options and can be chosen distinctly from one another. The meter itself has four programmable setpoints with adjustable hysteresis and can trigger up to four relays once the setpoints are reached; the first setpoint can use delay-on-make and delay-on-break for automatic pump control functionality. The FL-B101D40-TC is intended for measuring temperature through the IT10 input module, allowing it to take J, K, R, and T type thermocouples. Users can select between °C/°F and 1°/0.1° resolution for the display. Price: $348, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IT10, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FL-B101D40PF: The FL-B101D40 is a combination bargraph and numeric display with optional control functionality through user-selected output modules. The bargraph has 101 segments with options for horizontal or vertical displays and center zeroing, while the numeric display can display between -1999 to 9999 counts. Both bargraph and numeric display have a wide variety of color options and can be chosen distinctly from one another. The meter itself has four programmable setpoints with adjustable hysteresis and can trigger up to four relays once the setpoints are reached; the first setpoint can use delay-on-make and delay-on-break for automatic pump control functionality. The FL-B101D40PF is meant for use as a power factor indicator, accepting an analog DC signal from a power factor transducer. Inputs can include 4-20mA, 0-1mA, 2VDC, 5VDC, and 10VDC. It provides a bargraph and digital display reading in the format customary for power factor meters, with the bargraph centered at PF=1.0. Lead and lag are indicated by the bargraph extending upward (lead) or downward (lag) with cos(theta) scale markings from LAG 0.5 to 1.0 to LEAD 0.5. The digital display provides a corresponding numeric readout of the same data with LAG represented by negative sign. Price: $348, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IP07, R12, R14 FL-B101Q: 144x36mm, Leopard, 101 Segment Bargraph. Please note that in 2012 the headers were changed from 2-pin to 3-pin headers. This is differs to what is shown in the Product Manual. New header details here (PDF). Price: $316, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, OIC, OIV, R12, R14 FL-B101Q-ACA: Bargraph Meter, AC Amps with RMS Option, Analog current or voltage outputs and up to four relays outputs, 144x36mm, 101 Segment in a 9/64 DIN CASE Price: $316, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IA09, IA11, OIC, OIV, R12, R14 FL-B101Q-ACV: Bargraph Meter, AC Volts with RMS Option, 144x36mm, 101 Segment in a 9/64 DIN CASEOptional Isolated 16 bit, 4-20mA Current or 0-10V DC Voltage analog output and up to four optional relays. Price: $316, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IA06, IA07, IA12, IA3V, OIC, OIV, R12, R14 FL-B101Q-DCA: DC Amps 101 Segments Bargraph (red, green or tri-color) Meter Controller and Transmitter. Excellent replacement for Horizontal and Vertical Switchboard Meters. 144x36mm, in a 9/64 DIN Case. Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC. Price: $316, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: ID02, ID04, ID09, OIC, OIV, R12, R14 FL-B101Q-DCV: 2/20/200V DC Volts Meter Controller and Transmitter, Excelent replacement for Horizontal and Vertical Switchboard Meters, 144x36mm, 101 Segments in a 9/64 DIN Case Price: $316, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: ID01, ID05, OIC, OIV, R12, R14 FL-B101Q-HZ: Bargraph Meter, AC Line Frequency with Isolated current or voltage output and up to 4 relays. 144x36mm, 101 Segment in a 9/64 DIN Case Price: $316, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IF02, IF06, OIC, OIV, R12, R14 FL-B202Q: 144x36mm, Leopard, Dual 101 Segment Bargraphs. Please note that in 2012 the headers were changed from 2-pin to 3-pin headers. This is differs to what is shown in the Product Manual. New header details here (PDF). Price: $402, Case: 144x72mm 9/32 DIN (9/32), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IDP4, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 PL-B101D40: 144x24mm, Meter Bargraph Controller. 101 Segment, 4 Digit LED Price: $347 Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IGYZ, IP01, IP02, IP03, IP07, IR03, IR05, IS01, IS02, IS04, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, OIC, OIV, R12, R14 ### X-Series Meters BX-35: 96x24mm, Lynx, 3.5 Digit Price: $171, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IF02, IGYZ, IP01, IP02, IP03, IR02, IR04, IR05, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, IX00 BX-35-ACA: AC amperes, Scaled RMS. 5 Amp (built-in shunt), 3.5 digit True RMS optional Price: $171, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA09, IA11 BX-35-ACV: A 3.5 DIGIT AC Volt Meter with either Scaled RMS VAC (IA01) or True RMS VAC (IA06) Input Modules up 300VAC. Price: $171, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA06, IA07, IA12, IA3V BX-35-DCA: 20/50/100/200mV DC Full Scale, 96x24mm, 3 1/2 Digit with 0.56” LEDs in a 1/16 DIN Case Price: $171, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID02 BX-35-DCV: 2V/20V/200V DC Meter, 96x24mm, 3 1/2 Digit with 0.56” LEDs in a 1/16 DIN case Price: $171, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID01, ID05 BX-35-HZ: Line frequency 199.9 or 500 Hz up to 700V AC input, 3.5 digit Price: $171, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IF02 BX-45: 96x24mm, Lynx, 4.5 Digit Price: $203, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IF02, IGYZ, IP01, IP02, IP03, IR02, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, IX00 BX-45-ACA: 5 amp AC current meter, 4.5 Digit with 0.56" or 0.8" LEDs True RMS optional Price: $203, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA09, IA11 BX-45-ACV: A 4.5 DIGIT AC Volt Meter with either Scaled RMS VAC (IA01) or True RMS VAC (IA06) Input Modules up to 300 VAC. Price: $203, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA06, IA07, IA12, IA3V BX-45-DCA: 20/50/100/200mV DC Full Scale, 96x24mm, 4 1/2 Digit with 0.56” LEDs in a 1/16 DIN Case Price: $203, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID02 BX-45-DCV: 2V/20V/200V DC Meter, 96x24mm, 4 1/2 Digit with 0.56” LEDs in a 1/16 DIN case Price: $203, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID01, ID05 BX-B31: 96x24mm, Lynx, 31 segment bargraph. Available in red, or green displays, with or without relay outputs. Price: $238, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IF02, IGYZ, IP01, IP02, IP03, IR02, IR04, IR05, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, R2 DX-35: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Lynx, 3.5 Digit Price: $193, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IF02, IGYZ, IP01, IP02, IP03, IR02, IR04, IR05, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, IX00 DX-40: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Lynx, Large 4 Digit Price: $235, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IF02, IGYZ, IP01, IP02, IP03, IR02, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, IX00 DX-45: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Lynx, 4.5 Digit Price: $208, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IF02, IGYZ, IP01, IP02, IP03, IR02, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, IX00 FX-B101Q: 144x36mm, Lynx, 101 Segment BargraphOptional Isolated 16 bit, 4-20mA Current or 0-10V DC Voltage analog output FX-B101Q is being discontinued. Finite quantity in stock. The Replacement model is FL-B101Q. Compatible modules: IA05, IA06, IA07, IA08, IA09, IA11, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IF02, IGYZ, IP01, IP02, IP03, IP07, IR02, IR04, IR05, IS05, IS06, IT03, IT04, IT05, IT06, IT07, IT08, IT09, IT14, OIC, OIV ### Other Meters AM-20: A rugged 20 Segment LED Bargraph. Single positive inputs only. Input ranges: 4-20mA,2V, 20V, and 200V, with2Vbeing standard.Selectable Dot Bar mode and scale indicators. X5 resolution increase with proportional brightness mode. Custom scaling available.Operates as a center-zero meter with isolated 5 V power supply. 0.15" segments. Current consumption 20 mA in Bar mode. Can operate from 4 to 24V DC in Dot mode. Price: $130 Built-in functions: DC Milliamp 2/20/200mA with Offset and 24V Excitation, DC Volts 2/20/200V/Custom with Offset and 24V Excitation AM-30: 5V DC Powered 31 Segment LED Bargraph with optional Single (AM-30R1) or Dual (AM-30R2) Setpoints.Seven header selectable input ranges of 50mV, 100mV, 200mV,1V,5V ,10V and 4-20mA.The meter comes standard input of1Vwith a scale of 0 – 100%. The meter may also be ordered with a dot mode display option. Price: $216 Built-in functions: DC Milliamp 4-20mA, DC Volts 50mV/100mV/200mV/1V/5V/10V AM-30R1: 5V DC Powered 31 Segment LED Bargraph with Single Setpoint.Seven header selectable input ranges of 50mV, 100mV, 200mV,1V,5V ,10V and 4-20mA.The meter comes standard input of1Vwith a scale of 0 – 100%. The meter may also be ordered with a dot mode display option. Price: $224 Built-in functions: DC Milliamp 4-20mA, DC Volts 50mV/100mV/200mV/1V/5V/10V AM-30R2: 5V DC Powered 31 Segment LED Bargraph with Dual Setpoint.Seven header selectable input ranges of 50mV, 100mV, 200mV,1V,5V ,10V and 4-20mA.The meter comes standard input of1Vwith a scale of 0 – 100%. The meter may also be ordered with a dot mode display option. Price: $264 Built-in functions: DC Milliamp 4-20mA, DC Volts 50mV/100mV/200mV/1V/5V/10V BL-40-HZ: Line Frequency with Isolated current or voltage output and up to 4 relays. 96x24mm, 4 Digit 0.56” LEDs in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IF05, IF06, OIC, OIV, R2 BL-40PSF-ACA: Built-in Programmable Scale Factor, No Input required to calibrate, scalable to read the Primary CT up to 9999A with a 5 Amp or 1 Amp secondary, 96x24mm, 4 Digit 0.56” LEDs in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA09, IA11, OIC, OIV, R2 BL-40PSF-ACV: Built-in Programmable Scale Factor, No Input required to calibrate, scalable to read any PT up to 9999V with secondary of 120/240 VAC, 96x24mm, 4 Digit 0.56” LEDs in a 1/16 DIN Case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: IA06, IA07, IA12, IA3V, OIC, OIV, R2 BL-40PSF-DCA: Built-in Programmable Scale Factor, No Input required to calibrate, DC Amp Meter, Transmitter and Controller with optional 4-20mA or 0-10 VDC Output. 20/50/100/200mV DC Full Scale, 96x24mm, 4 Digit 0.56” LEDs in a 1/16 DIN CASE Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID02, OIC, OIV, R2 BL-40PSF-DCV: Built-in Programmable Scale Factor, No Input required to calibrate, DC Amp Meter, Transmitter and Controller with optional 4-20mA or 0-10 VDC Output. 2/20/200V DC Meter, 96x24mm, 4 Digit 0.56” LEDs in a 1/16 DIN CASE Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID01, ID05, OIC, OIV, R2 BL-40PSF-PROCESS: A powerful smart 4-20mA/0-10V process meter relay with Isolated 4-20 mA output retransmission capability for measurement and control applications. Built-in Programmable Scale Factor, No Input required to calibrate. 96x24mm, Meter Controller, Red or Optional Green or Super bright 4 Digit LED in a 1/16 DIN case Price: $260, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID01, ID05, IP01, IP02, OIC, OIV, R2 BN-35: The BN-35 is pin to pin compatible with the Newport model 215. The BN-35 is a cost-effective long-lasting high-quality pin for pin functional replacement for the Newport model 215, with many more features. It is a 3 1/2 digit voltmeter in a compact 96x24mm DIN case with non-isolated 5VDC power. Another version of the BN-35, the BN-35I with in- ternally isolated 9V, 12V, 15V or 24VDC power, is also available. The case has a short depth of just 2.83 inches (72mm) behind the panel. The meter has four user-selectable ranges of 200mV, 2V, 20V and 200V. The BN-35 may also be calibrated at the factory for these ranges or specially scaled for other ranges (see Ordering Information below). Provision to offset the zero is also available as an option for 4-20mA signals. The DIN case is interchangeable with all Texmate meters of a similar form factor. Replacements or repairs are "plug-and-play". Price: $199, Case: 96x24mm 1/16 DIN Short-Depth (1/16), Depth: 72mm Built-in functions: DC Volts 200mV/2V/20V/200V BN-35I: The BN-35 is pin to pin compatible with the Newport model 215.The BN-35I is a cost-effective long-lasting high-quality pin for pin functional replacement for the Newport model 215, with many more features. It is a 3 1⁄2 digit voltmeter in a compact 96x24mm DIN case with an internal iso- lated power supply. 24VDC is standard with optional 12VDC and 15VDC. The case has a short depth of just 2.83 inches (72mm) behind the panel. The meter has four user-selectable ranges of 200mV, 2V, 20V and 200V. The BN-35I may also be calibrated at the factory for these ranges or specially scaled for other ranges (see Ordering Information below). Provision to offset the zero is also available as an option for 4-20mA signals. The display is shipped standard with red LEDs, but green LEDs or super bright LEDs for high ambient light environments are also offered. Display Segment Test, Display Blank and Hold Reading are standard features. As with the BN-35I, the DIN case is interchangeable with all Texmate meters of a similar form factor. Replacements or repairs are "plug-and-play". Price: $249, Case: 96x24mm 1/16 DIN Short-Depth (1/16), Depth: 72mm Built-in functions: DC Volts 200mV/2V/20V/200V BN-40BCD: Binary Code Display, 4.0 Digit, 5VDC,Optional 12VDC Power. SelectBN-40BCD/12in Special Options tab.Parallel or MUX BCD Inputs. Price: $305 Built-in functions: Digital Input BN-45-DCV: The BN-45 is pin-to-pin compatible with the Newport model 2520. The BN-45 is the big brother to the BN-35 series meters with a 4.5-digit display. It is a short-depth, dimmable voltmeter with a non-isolated 5VDC power supply in a compact 96x24mm case that has a short depth of just 2.83 inches (72mm) behind the panel. The meter has five common input ranges of 2V (standard), 20V, 200V, and 200mVDC. Other ranges and special scaling can be ordered and calibrated at the factory (see Special Options & Custom Calibration tab below). Provision to offset the zero is also available as an option, including different offset ranges. The display is shipped standard with red LEDs. Blue LEDs that are visible under bright sunlight, and green LEDs are also offered. Display Test, Dim/Blank, and Hold Reading are standard features. Great for high voltage measurement, EV battery applications, and solar battery arrays. If you need 5V, 24V or 48V isolation, or are measuring up to 1200V, please view our BN-45I. Price: $316, Case: 96x24mm 1/16 DIN Short-Depth (1/16), Depth: 72mm Built-in functions: DC Volts 2V/20V/200V/1200V BN-45CL420: The BN-45CL420 is a slim, short-depth 4.5-digit (±19999) display,dimmable, 4 to 20mA current loop meter with a default selection of 9-36VDC or optional 36-75VDC power supply (both isolated and autosensing) for your 12V, 24V, and 48VDC applications. It includes special input protection circuitry that can withstand up to 50VDC connection and overcurrents up to 40mA (clamps to 32mA).The BN-45CL420 is specifically designed to be factory-calibrated to almost any conceivable engineering unit, such as temperature, pressure, viscosity, or flow rates etc.It is in a compact 96x24mm case that has a short depth of just 2.83 inches (72mm) behind the panel.The display is shipped standard with red LEDs. Blue LEDs that are visible under bright sunlight, and green LEDs are also offered. Display Test, Dim/Blank, and Hold Reading are standard features. Price: $342, Case: 96x24mm 1/16 DIN Short-Depth (1/16), Depth: 72mm Built-in functions: 4-20mA BN-45I-DCV: The BN-45I is a 4.5-digitdimmablevoltmeter with power supply options of 5VDC (isolated, standard), 9-36 VDC, or 36-75 VDC (both auto-sensing and isolated, optional) for your 5V, 12V, 24V, and 48VDC applications. It is in a compact 96x24mm case that has a short depth of just 2.83 inches (72mm) behind the panel.The meter has three common input ranges of 2V (standard), 20V, or 200VDC (both optional), and an optional factory-installed 1200VDC range. Other ranges and special scaling can be ordered and calibrated at the factory (see Special Options & Custom Calibration tab below). Provision to offset the zero is also available as an option, including different offset ranges.The display is shipped standard with red LEDs. Blue LEDs that are visible under bright sunlight, and green LEDs are also offered. Display Test, Dim/Blank, and Hold Reading are standard features.Another version of the BN-45I, the modelBN-45, is also available with a non-isolated 5VDC power supply. Price: $342, Case: 96x24mm 1/16 DIN Short-Depth (1/16), Depth: 72mm Built-in functions: DC Volts 2V/20V/200V/1200V BX-35-PROCESS: 4-20mA / 0-10V process, 96x24mm, 3.5 Digit Price: $171, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID01, ID05, IP01, IP02 BX-45-PROCESS: 4-20mA / 0-10V process, 96x24mm, Lynx, 4.5 Digit Price: $203, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID01, ID05, IP01, IP02 BX-B31-PROCESS: Bargraph Meter, 31 LED segments, 96x24mm Price: $238, Case: 96x24mm 1/16 DIN (1/16), Depth: 117mm Compatible modules: ID01, ID05, IP01, IP02, R1, R11, R16, R2 CL-Astern-Ahead: The CL-Astern-Ahead RPM tachometer is based on the popular CL-B101D40 circular, tricolor bargraph meter with 4 digit display and four programmable setpoints (with optional relay outputs) for monitoring and control applications. As an Astern-Ahead-RPM tachometer, the bargraph is centered and can show any range of -/+ (Astern / Ahead) values on a customizable faceplate. RPM value (scalable from -1999 to 9999) is optionally shown in the 4-digit display. Nearly any VDC, VAC, or mA current input signal can be accommodated. The bargraph colors can be set to red, green, or orange for either range and center. The 4-digit display can be red or green. Brightness can be reduced by half with a simple switch input.Setpoints and relay closures can be used to alarm the user and/or trigger other equipment when certain RPM values are exceeded, e.g., say the maximum desired RPM is 135 but can be set up to 150, then a setpoint can be set up to change the bargraph color to red if RPM exceeds 135 (and relay can also be triggered at that time). Setpoints can also be used to show throttle position (throttle provides an input signal to the meter) on the tricolor bargraph including center deadband (e.g., green), changing color when the throttle is moved into the Astern (e.g., orange) or Ahead (e.g., red) zones (or center deadband is green and Astern/Ahead are orange, leaving red for RPM alarm signaling via setpoint). Relays can replace microswitch signaling to the control room for Astern and Ahead activation. The throttle position can be communicated via analog output (VDC or 4-20mA) to engine control.Other measurement and control options are possible. Contact Texmate, Inc. to discuss your application! Price: $714 Compatible modules: AIC, AIV, ID01, ID03, IP01, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CL-B101D40PF: This unit accepts an analog DC signal from a Power Factor transducer, ranging from 4-20mA, 0-1mA, 2VDC, 5VDC, and 10VDC.It provides a bargraph and digital display of the reading in the format customary for Power Factor meters with the bargraph centered at PF=1.0.Lead and lag are indicated by the circular bargraph extending clockwise (lead) or counter clockwise (lag) with cos(theta) scale markings from LAG 0.5 to 1.0 to LEAD 0.5.The digital display provides a corresponding numeric readout of the same data with LAG represented by a negative sign. Price: $435, Case: 144x36mm 9/64 DIN (9/64), Depth: 117mm Compatible modules: IA3V, IP07, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62 CM-35XT: 3.5 digit LCD, Loop Powered, 4-20mAOptional Dummy 0, °F or °C DisplayNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $194 Built-in functions: 4-20mA CM-35XTL: A Multirange, Easily-Scaled 4-20 mA Process Meter with Screw Terminal and Edge Connector Inputs, Dummy 0, °C OR °F and less than 1 V Loop Drop, 3.5 digit LCDNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $227 Built-in functions: 4-20mA CPW-503: 3 phase Power Meter▪ Basic model includes standard display, standardpower supply, and RS-485 Modbus RTU with 2Relays.▪ Voltage Range 600V, Current Range 0.5~5A or0.05~1A (Optional)▪ Digital Input (Optional) Compatible modules: AC1, AC5, ACY DD-40VHZ: Dual Display for AC Volt/Frequency. Dual 4 digit with 0.3" LEDs. 30-300 VAC/20-450Hz input. 1/16 DIN Case. Price: $349 Built-in functions: AC Volts 30-300V, Line Frequency 20-450Hz DL-40-HZ: A 4 DIGIT AC Frequency Meter Controller and Transmitter with ranges of .01Hz / .1Hz and 1Hz.Up to 4 relays with combinations of 2/ 9A for C and 2/4A form A. other combinations availableAnalog output 0-20mA / 4-20mA or 0-10VDCUniversal Auxiliary Switching Power Supply 85-265 VAC / 95-365 VDC @ 50/60Hz Standard or Optional 15-48 VAC / 10-72 VDC.Case: 1/8 DIN size 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Meter to be used on Power Industries and Control Rooms. Price: $246, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IF05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254 DL-40-RTD: 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Temperature Meter, Red or Optional Green or Super bright 4 Digit LED in a 1/8 DIN Case Price: $246, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IT11, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254 DL-40JANUS-ACA: High Accuracy Programmable AC Amp Meter, Transmitter and Controller, allowing rescaling with or without an external signal source and features a switchable program lock.Optional Modbus RTU RS-485 serial (new) or analog and up to six relays output for measurement and control applications in a 1/8 DIN case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $284, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IA09, IA11, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254, S485 DL-40JANUS-ACV: High Accuracy Programmable AC Volt Meter, Transmitter and Controller, allowing rescaling with or without an external signal source and features a switchable program lock.Optional Modbus RTU RS-485 serial (new) or analog and up to six relays output for measurement and control applications in a 1/8 DIN case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $284, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IA06, IA07, IA12, IA3V, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254, S485 DL-40JANUS-DCA: DC Amp Meter, Transmitter and Controller, allowing rescaling with or without an external signal source and features a switchable program lock. Optional Modbus RTU RS-485 serial (new) or analog (4-20mA) output and up to six relays output for measurement and control applications.1/8 DIN case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"). Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC. Price: $284, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, ID02, ID04, ID09, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254, S485 DL-40JANUS-DCV: DC Volt Meter, Transmitter and Controller, allowing rescaling with or without an external signal source and features a switchable program lock.Optional Modbus RTU RS-485 serial (new) or analog and up to six relays output for measurement and control applications in a 1/8 DIN case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $284, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, ID01, ID05, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254, S485 DL-40JANUS-PROCESS: A powerful smart process Meter, Transmitter and Controller, allowing rescaling with or without an external signal source and features a switchable program lock.Optional Modbus RTU RS-485 serial (new) or analog and up to six relays output for measurement and control applications in a 1/8 DIN case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $284, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, ID01, ID05, IP01, IP02, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254, S485 DL-40JANUS-SG: A powerful smart meter to measure 4 wire/6wire pressure transducers, strain gauges, allowing rescaling with or without an external signal source and features a switchable program lock.Optional Modbus RTU RS-485 serial (new) or analog and up to six relays output for measurement and control applications in a 1/8 DIN case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $284, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: AIC, AIV, IS01, IX00, OR12, OR14, OR23, OR25, OR32, OR34, OR54, OR62, R2, R214, R234, R254, S485 DV: DV series Analog Switchboard Meter withDigital Display±0.5% + 2 countsAC/DC Auxiliary Power50/60Hz Operating Frequency Price: $497 Compatible modules: ACA-001, ACA-01, ACA-05, ACA-20, ACV-010, ACV-100, ACV-110, ACV-120, ACV-150, ACV-500, DCA-001, DCA-010, DCA-100, DCA-420, DCA-50, DCA-60, DCA-75, DCV-50, DCV-500 DX-35-ACA: AC amperes, True RMS. 5 Amp (built-in shunt), 3.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA09, IA11, IX00 DX-35-ACV: A 3.5 DIGIT AC Volt Meter with True RMS VAC Input Modules (IA06) up to 600VAC.Case: 1/8 DIN size 96X48 mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Meter to be used on Power Industries, Scalable to read any Potential Transformer Primary rated up to 2KV with 110,120 or 240 Secondary Volts. Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA06, IA07, IA12, IA3V, IX00 DX-35-DCA: DC Amps, 3.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"). Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC. Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ID02, ID04, ID09, IX00 DX-35-DCV: DC volts selectable from2 V/ 20 V / 200 V, 3.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ID01, ID05, IX00 DX-35-HZ: Line frequency 199.9 or 500 Hz up to 700V AC input, 3.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IF02, IX00 DX-35-PROCESS: Process 4 to 20 mA, Fully user scalable, 3.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")excitation optional Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IP01, IP02, IX00 DX-35-RTD-C: Pt.,100Ω in °C, 1° resolutionPlatinum RTD sensorsutility temperature meter96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT03 DX-35-RTD-C.1: Pt.,100Ω in °C, 0.1° resolutionPlatinum RTD sensorsutility temperature meter96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT14 DX-35-RTD-F: Pt.,100Ω in °F, 1° resolutionPlatinum RTD sensorsutility temperature meter96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT04 DX-35-RTD-F.1: Pt.,100Ω in °F, 0.1° resolutionPlatinum RTD sensorsutility temperature meter96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT05 DX-35-SG: Cost-effective meter to measure 4 wire pressure transducers, strain gauges and load cells. 2mV/20mV/V 5/10V Excitation. 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IS05, IX00 DX-35-TC-JC: 3.5 digit, J thermocouple, °C, 1° Resolution (760°C), 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT08, IX00 DX-35-TC-JF: J Thermocouple order, Â°F, 3.5 digit, 0.56" LED, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT06, IX00 DX-35-TC-KC: 3.5 digit, K thermocouple, °C, 1° Resolution (1260°C), 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT09, IX00 DX-35-TC-KF: K Thermocouple order, Â°F, 3.5 digit, 0.56" LED, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $177, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IT07, IX00 DX-40-ACA: AC amperes, True RMS. 5 Amp (built-in shunt), 4 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $235, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA09, IA11, IX00 DX-40-ACV: A 4 DIGIT AC Volt Meter with True RMS VAC Input Modules (IA06) up 300.0VAC.Case: 1/8 DIN size 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Meter to be used on Power Industries, Scalable to read any Potential Transformer Primary rated up to 10 KV with 110,120 or 240 Secondary Volts. Price: $235, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA06, IA07, IA12, IA3V, IX00 DX-40-DCA: 20/50/100/200mV DC Full Scale, 4 Digit with 0.56” LEDs in a 1/8 DIN Case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $235, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ID02 DX-40-DCV: DC volts selectable from2 V/ 20 V / 200 V, 4 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")A cost-effective Process meter for single ended or differential measurements of DC Volt signals, easy to install in Switchboard and Mosaic panels. Price: $235, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ID01, ID05 DX-40-PROCESS: 4-20mA Process Loop, 96x48mm, Large 4 Digits with 0.8" LEDs in a 1/8 DIN Case, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $235, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IP01, IP02, IX00 DX-45-ACA: 5 amp AC current True RMS meter, 4.5 Digit with 0.56" or 0.8" LEDs, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61") Price: $206, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA09, IA11, IX00 DX-45-ACV: A 4.5 DIGIT AC Volt Meter with True RMS VAC Input Modules (IA06) up to 300.0 VAC.Case: 1/8 DIN size 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")Meter to be used on Power Industries, Scalable to read any Potential Transformer Primary rated up to 20 KV with 110,120 or 240 Secondary Volts. Price: $206, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IA06, IA07, IA12, IA3V, IX00 DX-45-DCA: DC Amps, 4.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"). Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC. Price: $206, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ID02, ID04, ID09, IX00 DX-45-DCV: DC volts selectable from2 V/ 20 V / 200 V, 4.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")zero offset optional Price: $206, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: ID01, ID05, IX00 DX-45-PROCESS: Process 4 to 20 mA, Fully user scalable, 4.5 digit, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")excitation optional Price: $206, Case: 96x48mm 1/8 DIN (1/8), Depth: 117mm Compatible modules: IP01, IP02, IX00 FB-B50: World's First 50-Bar Loop Powered LED BargraphElegant 4 to 20mA loop powered bargraph.Low loop drop of only <4V (red), <4.6V (green) and <4.8V (blue)Needs no external power supply.Easy to calibrate with ZERO and SPAN potentiometers.Customized faceplates availableChoice of red or optional blue LEDsCan be stacked for multiple meter mounting. Price: $392 Built-in functions: 4-20mA FL-BDPSF-ACA: AC Amp, 144x36mm, PSF Meter Bargraph Controller with programmable scale factor. 101 Segment Red, Green or Tricolor bars, with Red or Optional Green 4 Digit LED Price: $348 Compatible modules: IA09, IA11, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FL-BDPSF-ACV: AC Volt, 144x36mm, PSF Meter Bargraph Controller with programmable scale factor. 101 Segment Red, Green or Tricolor bars, with Red or Optional Green 4 Digit LED Price: $348 Compatible modules: IA06, IA07, IA12, IA3V, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FL-BDPSF-DCA: DC Amps 101 Segment Bargraph (red, green or tri-color) with Red (optional Green)4 Digit LED Meter Controller and Transmitter. Excellent replacement for Horizontal and Vertical Switchboard Meters. 144x36mm, in a 9/64 DIN Case. Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC. Price: $348 Compatible modules: ID02, ID04, ID09, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FL-BDPSF-DCV: DC Volts, Built-in Programmable Scale Factor, 144x36mm, Meter Bargraph Controller. 101 Segment Red, Green or Tricolor bars, with Red or Optional Green 4 Digit LED. Price: $348 Compatible modules: ID01, ID05, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FL-BDPSF-PROCESS: Built-in Programmable Scale Factor, No Input required to calibrate, 144x36mm, 101 Segment, 4 Digit 0.32” LEDs in a 9/64 DIN Case Price: $348 Compatible modules: ID01, ID05, IP01, IP02, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FL-BQ-PROCESS: Smart mono-color digital bargraph with four fully programmable set points for monitoring, measurement, and control applications. 144x36mm, 101 Segment Price: $348 Compatible modules: ID01, ID05, IP01, IP02, OIC, OIV, R1, R11, R12, R13, R14, R15, R16, R2 FX-B101Q-ACA: Bargraph Meter, AC Amps with RMS Option, isolated 16 bit, Analog outputs -Current 4-20mA or voltage, 0-10V DC, 144x36mm, 101 Segment in a 9/64 DIN CASEFX-B101Q-ACA is being discontinued.Finite quantity in stock. The Replacement model isFL-B101Q-ACA. Compatible modules: IA09, IA11, IA3V, OIC, OIV FX-B101Q-ACV: Bargraph Meter, AC Volts with RMS Option, 144x36mm, 101 Segment in a 9/64 DIN CASEFX-B101Q-ACV is being discontinued.Finite quantity in stock. The Replacement model isFL-B101Q-ACV. Compatible modules: IA06, IA07, IA12, IA3V, OIC, OIV FX-B101Q-DCA: DC Amps 101 Segment (red or green) Bargraph with optional Isolated 4-20mA DC or 0-10VDC output, 144x36mm, 101 Segment in a 9/64 DIN CASE. Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC.FX-B101Q-DCA is being discontinued.Finite quantity in stock. The Replacement model isFL-B101Q-DCA. Compatible modules: ID02, ID04, ID09, OIC, OIV FX-B101Q-DCV: A Powerful Smart DCA Bargraph with optional Isolated 4-20mA DC or 0-10VDC output, 2/20/200V DC Meter, 144x36mm, 101 Segment in a 9/64 DIN CASEFX-B101Q-DCV is being discontinued.Finite quantity in stock. The Replacement model isFL-B101Q-DCV. Compatible modules: ID01, ID05, OIC, OIV FX-B101Q-HZ: Bargraph Meter, AC Line Frequency, 144x36mm, 101 Segment in a 9/64 DIN CASEFX-B101Q-HZ is being discontinued.Finite quantity in stock. The Replacement model isFL-B101Q-HZ. Compatible modules: IF02, OIC, OIV FX-BQ-PROCESS: A Powerful Smart Process Bargraph Meter with Isolated 4-20mA DC or 0-10VDC output144x36mm, 101 Segment in a 9/64 DIN CaseFX-BQ-PROCESS is being discontinued.Finite quantity in stock. The Replacement model isFL-BQ-PROCESS. Compatible modules: ID01, ID05, IP01, IP02, OIC, OIV MINI-5VDIM: The MINI-5VDIM is an accurate, ultracompact meter meant for bipolar voltage measurement between 200mV to 200V. It is powered by 5V DC, has a 41mA consumption, and features a dimmable display that can be connected in series in a control panel application or adjusted on a meter-by-meter basis. The MINI's exceptionally small size and power consumption make it especially suited for replacing circular analog gauges, to which Texmate offers a circular panel adapter. (Replaces the former DVM-5 and DVM-5/G) Price: $199, Depth: 45.5mm Built-in functions: DC Volts Bipolar ±200mV/±2V/±20V/±200V MINI-CL4-20: 0.01% Super Accurate Loop-powered 4-20mA Mini meter▪ Low voltage drop of a maximum of 5.3V▪ It can be factory scaled to read output in any engineering unit from 0 to 1999 and -1000 to 1000.▪ 3 1/2 Digit, 7mm, 0.276” LED(Replacement of DVM-5/CL) Price: $189 Built-in functions: 4-20mA MU-35: A Multi-range, Easily-scaled, DC Volts Measuring, AC/DC Powered LED Meter. The meter has three built-in header selectable ranges of2V, 20V and 200V, with2Vbeing standard.It is specifically designed to be easily user-scaled and calibrated to almost any conceivable engineering unit, such as temperature, pressure, viscosity or flow rates, etc., without requiring component changes. Price: $227 Built-in functions: DC Volts 2V/20V/200V MU-35CL: The MU-35CL is a miniature, streamlined4 to 20 mAcurrent loop meter.It is specifically designed to be easily user-scaled and calibrated to almost any conceivable engineering unit, such as temperature, pressure, viscosity or flow rates, etc., without requiring component changes. Price: $245 Built-in functions: 4-20mA PC-45X: A Versatile Event Counter/Totalizer Featuring 19999 Counts with Overrange Indication, or 9999 Counts with Cascade Output, Contact Closure or Logic Signal Input, High Contrast 0.48" 4.5 digits LCD, 4-6 V DC Powered with Outputs for User Supplied NICAD Battery Back-Up, Capable of Signal Powered Operation. Slim Bezel Case. Price: $162 Built-in functions: Counter Contact Closure or Logic Signal PC-45XAC: A Versatile Event Counter/Totalizer Featuring,19999 Counts with Overrange Indication, or 9999 Counts with Cascade Output, Contact Closure or Logic Signal Input, High Contrast 0.48" 4.5 digits LCD, AC Powered with Outputs for User Supplied NI-CAD Battery Back-Up. Slim Bezel Case.110 V AC power version of PC-45X Price: $185 Built-in functions: Counter Contact Closure or Logic Signal PM-35XAC110-AR1: 3.5 digit 0.48" LCD, 110/220VAC Powered LCD Differential Input and Autoranging Meters.New:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $233 Built-in functions: DC Volts Differential with Autoranging PM-45-DCV: The PM-45-DCV is a wide input range, differential or single-ended, 4.5-digit (± 19999 reading) digital panel meter. The standard input is2Vwith optional ranges of 200mV, 20V, 200V and 1200V DC.The PM-45-DCV is non-isolated 5V powered with optional choices of isolated 5V or autosensing 9-36VDC or 36-75VDC power supply. All with 1.5kV isolation for your 12V, 24V, and 48VDC applications. The 1200VDC input option must be ordered with an isolated power supply.Display Test, Hold Reading and Decimal Point selection are standard features.Great for High Voltage EV Battery and Solar Battery Range Price: $224 Built-in functions: DC Volts 200mV/2V/20V/200V/1200V PM-45X: The PM-45X is a digital panel meter with a 4.5 (19999) digit display meant for stable and accurate measurement of voltage, with a standard input of 2V and optional ranges between 200mV to 1200V. With a super-stable temperature-compensated reference, the PM-45X boasts an accuracy of 0.01% rdg + 1 digit. Additional features include true differential inputs, over-range/under-range, busy, and clock outputs, Run/Hold pins, and ultra-low power requirements (3-5 mA at +4.5 V to +5.5 V DC (25 mW)). This meter ships with both ratcheting and screw mounting clips that can be used in tandem for even greater mounting security. Price: $227, Depth: 103mm Built-in functions: DC Volts 200mV/2V/20V/200V/1200V PM-45X-DCV Price: $239 RP-3500D2: 3.5 (1999) Digital Indicator. 0.56" (14.22 mm) LEDUltra stable supper accurate with 100 Khz crystal controlled clockDifferential & Single-ended DC voltmeterDCV measure. Standard input is2Vwith optional 200mV, 20V, 200V 1200VPowered by 110V or 220V ACNEMA case Price: $293, Case: NEMA Standard Case, Depth: 83.5mm Built-in functions: DC Volts 200mV/2V/20V/200V/1200V RP-35A: A Precision AutozeroingHigh Input ImpedanceDifferential Panel Meterwith Switching AC/DC Power supply3.5 (1999) Digit o.56" LED in a NEMA Style caseDCV measure. Standard input is2Vwith optional 20V or 200V Price: $199, Case: NEMA Standard Case, Depth: 83.5mm Built-in functions: DC Volts 2V/20V/200V RP-4500D2: 4.5 (19999) Digit Indicator. 0.56" (14.22 mm) LEDUltra stable, super accurate with 100 Khz crystal controlled clockDifferential & Single-ended DC voltmeterDCV measure. Standard input is2Vwith optional 200mV, 20V, 200V 1200VPowered by 110V or 220V ACNEMA case Price: $345, Case: NEMA Standard Case, Depth: 83.5mm Built-in functions: DC Volts 200mV/2V/20V/200V/1200V RP-4500D2BCD: 4.5 (19999) Digit Indicator. 0.56" (14.22 mm) LEDUltra stable supper accurate with 100 Khz crystal controlled clockDifferential & Single-ended DC voltmeterDCV measure. Standard input is2Vwith optional 200mV, 20V, 200V 1200VPowered by 110V or 220V ACNEMA caseTri-State Buffered Parallel BCD Output Price: $499, Case: NEMA Standard Case, Depth: 83.5mm Built-in functions: DC Volts 200mV/2V/20V/200V/1200V SB-B31: The SB-B31 is the world's first loop-powered LED bargraph. It has a 31-segment display and displays a 4-20mA signal with options for user scaling and calibration via ZERO and SPAN potentiometers. Overall loop drop is ~4V with some variance depending on bargraph color choice; options are red, green, or blue. Price: $217, Case: 96x24mm 1/16 DIN (1/16) Built-in functions: 4-20mA SD-50X: World's First Ultra Short Depth, 5 digits, 16-Bits, 4-20mA DC Current Loop Powered Meter. Features a 0.5” (12.7mm) 7-segment LCD display in a 1/8 DIN Ultra Short Depth Case of 0.59" (15mm). Easy to use, high resolution, with a less than 4V loop drop. Price: $288, Case: 96x48mm 1/8 DIN Ultra Short-Depth (1/8), Depth: 15mm Built-in functions: 4-20mA SD-60XI: World's First Ultra Short Depth, 16-Bits, 4-20mA DC Current Loop-Powered Meter with Dual Totalizer6-Digit with 0.5” (12.7mm) LCD Display1/8 DIN Ultra Short Depth case of 0.59" (15mm) Price: $374, Case: 96x48mm 1/8 DIN Ultra Short-Depth (1/8), Depth: 15mm Built-in functions: 4-20mA SD-802XAI: World's First Ultra Short Depth, 16-Bits, 4-20mA DC Current Loop-Powered Meter with Dual Totalizer0.5” (12.7mm) LCD display with dual 8 digit lines in a 1/8 DIN Ultra Short Depth Case of 0.59" (15mm). Touch pad Display is standard, Push Button display option is available. Price: $428, Case: 96x48mm 1/8 DIN Ultra Short-Depth (1/8), Depth: 15mm Built-in functions: 4-20mA SM-35-DCV: Easily-Scaled 5V DC Powered 3.5 (1999) Digit Panel Meter. Wide range:2V(standard). Optional 50mVDC, 100mVDC Current Shunt, 20V, 200V,1000VDC, 4-20mA, 5V isolator and Differential Measurement. Great for High Voltage EV Battery and Solar Battery Range. Price: $163 Built-in functions: DC Milliamp 4-20mA, DC Volts 50mV/100mV/2V/20V/200V/1000V with Differential SM-35X: 3.5 digit LCD with "Display Hold" & Dummy Zero", 5V DC Powered, multirange Easily-Scaled DC Volt measurement meter. Standard input is2Vwith optional 20V or 200V.This is a replacement for PM-35X and PM-35XAC. For PM-35X and PM-35XAC, please contact us for a quote and provide your requested input range and display reading.New:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $152 Built-in functions: DC Volts 2V/20V/200V SP-35X: DC Signal-Powered, 0.48” LCD • DC voltage measurement from 5.0 to 199.9VDC • Automatic “+” or “-” Polarity indication • Easy 2-wire hook up • Input impedance varies from 10 KΩ at <10VDC to 60 KΩ with > 100VDC inputs • Display is blanked before reading becomes inaccurate when input signal drops to 3.5VDC.New:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $173 Built-in functions: DC Volts Signal Powered 5-200V SP-35XMV: DC Signal-Powered, 0.48” LCD • Designed for DC current measurement with 50, 60 or 100mV shunts in 20VDC to 100VDC systems • Header selectable for “High side” or “Low side” shunts • User scalable to display any current • Easy 4-wire hook up • Reversible or blanked polarity indication • Selectable “A” and “DC” descriptors & decimal points, 1.xxx, 1x.xx and 1xx.xNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $184 Built-in functions: DC Millivolt Signal Powered 50/60/100mV with Shunt SP-35XRMS: Two Wire Panel Meter, 3 1/2 Digit 0.48” LCD in a Slim Bezel CaseA Signal Powered Meter with Screw Terminal and Edge Connector Inputs.designed to measure AC/DC voltages with two header programmable ranges 15.0 to 199.9 VAC/DC and 15.0 to 250 VAC/DC. Price: $198 Built-in functions: AC/DC Volts Signal Powered 15-250V TEX-CAL-934: Process Calibrator + Simulator + Function Generator Built-in functions: Custom Option TL: An economically smart programmable transmitter relay with isolated 4 to 20 mA retransmission or control loop output capability for measurementand control applications. DIN rail mounted. Price: $299 Compatible modules: IA05, IA07, IA08, IA09, IA3V, ID01, ID02, ID03, ID04, ID05, ID07, ID09, IP01, IP02, IP03, IP07, IR02, IR03, IR05, IS01, IS02, IS04, IS05, IS06, OIC, OIV TL-4-20mA: An economically smart pre-configured programmable transmitter relay with isolated 4 to 20 mA retransmission or control loop output capability for measurement and control applications. DIN rail mounted. 4-20mA Isolator. The TL-4-20mA includes an analog output in the base price. The 16-bit OIC and OIV modules provide outputs of 4-20mA current or 0-10V DC voltage and can be selected under "Analog Outputs". Price: $299 Compatible modules: IP01, IP02, OIC, OIV TL-ACA-RMS: The TL-ACA-RMS is an AC 5 Amp Scaled RMS Transmitter. Using Texmate's modular configuration system, the TL-ACA-RMS can take a variety of inputs, relays, analog outputs, and other custom calibration and modification setups to ensure that you get the exact solution you're looking for. The TL-ACA-RMS includes an analog output in the base price. The 16-bit OIC and OIV modules provide outputs of 4-20mA current or 0-10V DC voltage and can be selected under "Analog Outputs". Price: $299 Compatible modules: IA05, IA11, OIC, OIV TL-ACV-RMS: Leopard AC Volts Scaled RMS Transmitter The TL-ACV-RMS includes an analog output in the base price. The 16-bit OIC and OIV modules provide outputs of 4-20mA current or 0-10V DC voltage and can be selected under "Analog Outputs". Price: $299 Compatible modules: IA05, IA06, IA07, IA12, IA3V, OIC, OIV TL-DCA: Compact, 22.5mm, DIN Rail Mount Transmitter DC mV ±100mV to 4-20mA Transmitter (Default Range) Two optional 6A FormC Relays Triple Isolated Price: $299 Compatible modules: ID02, OIC, OIV TL-DCV: Compact, 22.5mm, DIN Rail Mount Transmitter DC-Volts, 2V to 4-20mA Transmitter (Default Range) Two optional 6A FormC Relays Triple Isolated Price: $299 Compatible modules: IA3V, ID01, ID05, OIC, OIV TL-DUAL-LOOP: Compact, 22.5mm, DIN Rail Mount Universal Analog to dual (2-channel) 4-20mA retransmitter with 24VDC excitation at input. Triple Isolated: Power to Inputs, Power to Outputs and Inputs to Outputs. 5000 VRMS Isolation at Input. Price: $359 TL-Frequency: Leopard Line Frequency TransmitterThe TL-Frequency includes an analog output in the base price. The 16-bit OIC and OIV modules provide outputs of 4-20mA current or 0-10V DC voltage and can be selected under "Analog Outputs". Price: $299 Compatible modules: IF05 (TL Series), IF06, IF08 (45-55Hz), IF08 (55-60Hz), IF08 (55-65Hz), IF08 (Custom Range), OIC, OIV TL-QUAD-LOOP: Compact, 22.5mm, DIN Rail Mount Universal Analog to quad (4-channel) 4-20mA retransmitter with 24VDC excitation at input. Triple Isolated: Power to Inputs, Power to Outputs and Inputs to Outputs. 5000 VRMS Isolation at Input. Price: $424 TL-RPM: TL RPM Transmitter/Signal Conditioner. Din Rail MountThe TL-RPM includes an analog output in the base price. The 16-bit OIC and OIV modules provide outputs of 4-20mA current or 0-10V DC voltage and can be selected under "Analog Outputs". Price: $299 Compatible modules: IF05 (TL Series), OIC, OIV TL-TC-RTD: TL Series Temperature Transmitter/Signal Conditioner. Din Rail MountThe TL-TC-RTD includes an analog output in the base price. The 16-bit OIC and OIV modules provide outputs of 4-20mA current or 0-10V DC voltage and can be selected under "Analog Outputs". Price: $299 Compatible modules: IT10, IT11, OIC, OIV TM-35JC: 3.5 digit, LED, Type J °C Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $108 Built-in functions: Thermocouple J Type °C TM-35JF: 3.5 digit, LED, Type J °F Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $108 Built-in functions: Thermocouple J Type °F TM-35KC: 3.5 digit, LED, Type K °C Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $108 Built-in functions: Thermocouple K Type °C TM-35KF: 3.5 digit, LED, Type K °F Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $108 Built-in functions: Thermocouple K Type °F TM-35XJC: 3.5 digit, LCD, Type J °C Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $216 Built-in functions: Thermocouple J Type °C TM-35XJF: 3.5 digit, LCD, Type J °F Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $216 Built-in functions: Thermocouple J Type °F TM-35XKC: 3.5 digit, LCD, Type K °C Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $216 Built-in functions: Thermocouple K Type °C TM-35XKF: 3.5 digit, LCD, Type K °F Thermocouple, 5VDC PowerNew:Meter is now shipped with both ratcheting type and screw type mounting clips. Combine both types to get extra mounting strength. Price: $216 Built-in functions: Thermocouple K Type °F TT-1S1M: Single Channel input and Single 4-20mA or 0-10V DC output Price: $141 Compatible modules: TTC, TTV TT-2D2MC: Dual Inputs; Single 4-20mA or 0-10V DC & Single RS-485 Output Price: $200 Compatible modules: TTCR, TTVR TT-2D2MM: Dual Inputs; Dual 4-20mA or 0-10V DC Outputs Price: $190 Compatible modules: TTCC, TTCV, TTVC, TTVV TTM-2S2MC: Dual same type signal Inputs; Single 4-20mA or 0-10V DC & Single RS-485 Output with Math Function Price: $185 Compatible modules: TTCR, TTVR TTM-2S2MM: Dual same type signal Inputs; Dual 4-20mA or 0-10V DC Outputs with Math Function Price: $185 Compatible modules: TTCC, TTCV, TTVC, TTVV UM-35-ACA: AC-Amps True RMS,5 Amp AC3.5 (1999) digit Red LED, ACA measure, 5 A AC (1.0.0.0.) Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IA11 UM-35-ACV: A 3.5 (1999) DIGIT AC Volt Meter True RMS, 200/600VACPOWER 120/240 VAC @ 50/60 Hz Selectable, Linear Supply 1.5 W, Optional 9-36 VAC/DC, 1.5WCase: NEMA Type 1 Size 42mm x 92 mm. depth 93.5 mmMeter to be used on Power Industries, Scalable to read any Potential Transformer Primary rated up to 2 KV with 110,120 or 240 Secondary Volts. Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IA06, IA07, IA12, IA3V UM-35-DCA: DC Amps, 3.5 (1999) digit Red LED. Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC. Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: ID02 UM-35-DCV: 3.5 (1999) digit Red LED, DCV measure. Standard input is 2V with optional 20V or 200V. Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: ID01, ID05 UM-35-HZ: 3.5 (1999) digit Red LED, AC Line Frequency, 15 to 199.9 Hz Price: $216, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IF02 UM-35-PROCESS: The UM-35-PROCESS is a 3.5 (1999) digit LED panel meter in a 42x92mm NEMA case. It measures process signals (4-20mA) and has user adjustable decimal points along with adjustable ZERO and SPAN potentiometers. See manual for more details. Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: ID01, ID05, IP01, IP02 UM-35-RTD-C: RTD, 100Ω Pt. 2/3/4-wire (-200 to 800°C)Platinum RTD sensorsutility temperature meter Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT03 UM-35-RTD-C.1: RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°C)Platinum RTD sensorsutility temperature meter Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT14 UM-35-RTD-F: RTD, 100Ω Pt. 2/3/4-wire (-200 to 1470°F)Platinum RTD sensorsutility temperature meter Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT04 UM-35-RTD-F.1: RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°F)Platinum RTD sensorsutility temperature meter Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT05 UM-35-SG: Pressure, Strain Gauge and Load Cell Panel Meter20/2mV/V, 5/10VExcitation, 4-wire3.5 (1999) digit with 0.56” LEDs in a NEMA type 1 Style Case Price: $203, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IS05 UM-35-TC-JC: Thermocouple, J Type (0-760 °C) input, 1° resolution, order °C or °F, 3.5 (1999) digit Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT08 UM-35-TC-JF: Thermocouple, J Type (0-1400 °F) input, 1° resolution, order °C or °F, 3.5 (1999) digit Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT06 UM-35-TC-KC: Thermocouple, K Type (0-1260 °C) input, 1° resolution, order °C or °F, 3.5 (1999) digit Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT09 UM-35-TC-KF: Thermocouple, K Type (0-1999 °F) input, 1° resolution, order °C or °F, 3.5 (1999) digit Price: $179, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IT07 UM-40-ACV: A 4 (9999) DIGIT AC Volt Meter, True RMS, 200/600VACPOWER 120/240 VAC @ 50/60 Hz Selectable, Linear Supply 1.5 W, Optional 9-36 VAC / DC 1.5WCase: NEMA Type 1 Size 42mm x 92 mm. depth 93.5 mmMeter to be used on Power Industries, Scalable to read any Potential Transformer Primary rated up to 10 KV with 110,120 or 240 Secondary Volts. Price: $197, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: IA06, IA07, IA12, IA3V UM-45-DCA: DC Amps, 4.5 (19999) digit Red LED. Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC. Price: $216, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: ID02 UM-45-DCV: 4.5 (19999) digit Red LED, DCV measuring, 2/20/200V Price: $216, Case: NEMA Type 1 42x92mm, Depth: 93.5mm Compatible modules: ID01, ID05 ### Input Modules AC1: AC 0.05~1A ($71) AC5: AC 0.5~5A ACA-001: 0-100mA AC Direct ($126) ACA-01: 0-1A AC Used With CT ($101) ACA-05: 0-5A AC Used With CT ($101) ACA-20: 0-20A AC Direct ($154) ACV-010: 0-10 VAC Direct ($93) ACV-100: 0-100 VAC Used with PT ($93) ACV-110: 0-110 VAC Used with PT ($93) ACV-120: 0-120 VAC Used with PT ($93) ACV-150: 0-150 VAC Used with PT ($93) ACV-500: 0-500 VAC Direct ($93) ACY: Custom Option ($114) DCA-001: 0-100mA DC Direct ($91) DCA-010: 0-10 ADC Direct ($103) DCA-100: 0-100mV Used with Shunt ($93) DCA-420: 4-20 Ma Proccess Loop ($93) DCA-50: 0-50mV Used With Shunt ($93) DCA-60: 0-60mV Used with Shunt ($93) DCA-75: 0-75mV Used with Shunt ($93) DCV-50: 0-50 mVDC ($93) DCV-500: 0-500 VDC ($93) IA05: AC-Amps Scaled RMS, 5 Amp AC ($118) IA06: AC Volts True RMS, 3 ~ 600V AC ($127) IA07: AC Volts True RMS, 2V/20V AC ($127) IA08: AC-mA True RMS, 2/20/200mA AC ($119) IA09: AC-Amps True RMS, 1 Amp AC ($119) IA11: AC-Amps True RMS, 5 Amp AC ($127) IA12: AC mV True RMS, 3 ~ 200mV ($127) IA3V: AC Volts True RMS, 30mV ~ 3V AC ($127) IC02: Smart Counter (Quadrature) ($228) IC03: Smart Quadrature Counter with dual SSRs ($245) ID01: DC-Volts, 2/20/200V/Custom w/24V DC Exc ($75) ID02: DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc ($86) ID03: DC-Milliamp, 2/20/200mA DC w/24V DC Exc ($86) ID04: DC-Amps, 5A DC ($105) ID05: DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc. ($93) ID06: DC-Volts 2/20/200/Custom V DC w/Ext.Decimal Select ($82) ID07: DC-Milliamp, 2/20/200mA DC w/Offset and 24V Exc ($87) ID08: DC-Volts, 2/20/200/Custom V DC w/Ext.LIN Table Select ($87) ID09: DC-Amps, 1A DC ($105) IDC1: Dual UP/DOWN Counter ($152) IDD1: Dual DC/Volts, 2V DC ($123) IDD2: Dual DC-Millivolts, 50mV DC ($129) IDD3: Dual DC-Milliamps, 2mA DC ($129) IDD4: Dual Input, DCV and DCmV 2V/50mV DC ($129) IDD5: Dual Input DC Volts and 4-20 mA 2V/4-20mA DC ($129) IDD6: Dual Input DC mV and 4-20 mA 50mV/4-20mA DC ($129) IDF2: Dual Frequency ($152) IDP1: Dual Process Loop, 4-20mA ($133) IDP2: Dual Input, 3-wire RTD and 4-20mA ($152) IDP3: Dual Input, Thermocouple (J/K/R/S/T/B/N) and 4-20mA ($141) IDP4: Dual Universal Process input 2V/10V/20V/200V/2mA/20mA/Custom ($129) IDS3: Dual Input, Strain Gage and Frequency ($178) IDT1: Dual Thermocouple (J/K/R/S/T/B/N) ($141) IDT2: Dual RTD Input, 2/3-wire, 100Ω Pt ($152) IDT3: Dual Input, 3-wire RTD and DCV ($152) IDT4: Dual Input, Thermocouple (J/K/R/S/T/B/N) and 2VDC Input ($141) IDT6: Dual Input, Thermocouple and Load Cell ($174) IF02: Line Frequency, 15 to 199.9 Hz ($93) IF05: Low Volt Frequency / TTL / Proximity Switch / RPM ($95) IF05 (TL Series): Universal Frequency / RPM (TL Series) ($95) IF06: Line Frequency, 60-600V AC UL ($133) IF08 (45-55Hz): Line Frequency, 45-55Hz (TL Series) ($178.5) IF08 (55-60Hz): Line Frequency, 55-60Hz (TL Series) ($119) IF08 (55-65Hz): Line Frequency, 55-65Hz (TL Series) ($119) IF08 (Custom Range): Line Frequency, Custom Range 0.00-9999Hz (TL Series) ($119) IF10: Universal Frequency / RPM / UP DOWN Counter ($98) IGYX: Direct Pressure (Absolute or Differential/Gage) with 2 Digital Inputs. ($241) IGYY: Dual Direct Pressure (Absolute or Differential/Gage). ($294) IGYZ: Universal Direct Pressure (Absolute or Differential/Gage). ($213) IH01: PH Indication ($126) IH02: pH Indication with Automatic Temperature Compensation ($163) IP01: Process Loop, 4-20mA ($75) IP02: Process Loop, 4-20mA with 24VDC Exc ($86) IP03: Process Input, 1-5V DC with Offset, 24V Exc ($86) IP06: Process Loop, 4-20mA with 24VDC Exc and Autocal ($86) IP07: Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom ($86) IP08: Universal Process Input with Autocal 2V/5V/10V/20V/200V/2mA/20mA/Custom ($105) IP09: 4-20mA with External Lin Table select ($75) IP10: Process + 3 Digital Inputs ($126) IPT1: Prototype Board for Custom Design ($33) IQD1: Quad DC Volts, 2V DC ($213) IQD2: Quad DC-Millivolts, 50mV DC ($213) IQP1: Quad Process Loop, 4-20mA ($213) IQT2: Quad RTD Platinum 100Ω RTD 2 Wire Connection ($213) IQT4: Quad RTD Platinum 100Ω RTD 4 Wire connection ($213) IQT5: Quad RTD / V / V / Frequency ($213) IR01: Resistance, 2/3/4-Wire, 200Ω/2kΩ/20kΩ ($75) IR02: 3 wire Potentiometer, 1kΩ min ($75) IR03: Linear Potentiometer, 1kΩ min. ($75) IR04: Resistance 2kΩ ($108) IR05: Resistance 2kΩ ($108) IS01: Strain Gage 5/10VDC Exc., 20/2mV/V, 4/6-wire ($108) IS02: Pressure 5/10VDC Exc., 20/2mV/V, 4/6-wire ($108) IS03: Pressure/Load Cell with AutoCal 5/10VDC Exc., 20/2mV/V, 4-wire ($115) IS04: Pressure/Load Cell with External Excitation, 20/2mV/V, 4/6-wire ($105) IS05: Pressure/Load Cell, 20/2mV/V, 5/10V Excitation, 4-wire ($108) IS06: Pressure/Load Cell External Excitation, 20/2mV/V, 4-wire ($106) ISD1: Smart DC Volts, High Speed 16 bit, 1, 10, 50, 200, 400, 800Hz update rates. Optimized for 50Hz rejection ($217) ISD2: Smart DC Volts, High Speed 16 bit, 1, 10, 60, 240, 480, 960Hz update rates. Optimized for 60Hz rejection ($217) ISD3: Smart DC Volts, High Speed 16 bit, 1Hz to 800Hz with dual isolated SSR's. Optimized for 50Hz rejection. ($250) ISD4: Smart DC Volts, High Speed 16 bit, 1Hz to 960Hz with dual isolated SSR's. Optimized for 60Hz rejection. ($250) ISD5: Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-400Hz. 50Hz rejection. ($324) ISD6: Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-480Hz. 60Hz rejection. ($324) ISD7: Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-400Hz with dual isolated SSR's. 50Hz rejection. ($380) ISD8: Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-480Hz with dual isolated SSR's. 60Hz rejection. ($380) ISD9: Smart Voltage and Resistance Input ($287) ISDA: Smart Dual Input DC Volts, 16 bit, 1Hz to 20Hz update (50 Hz rejection) ($245) ISDB: Smart Dual Input DC Volts, 16 bit, 1Hz to 20Hz update (60 Hz rejection) ($245) ISL1: Smart Dual LVDT (50Hz Rejection) ($389) ISL2: Smart Dual LVDT (60Hz Rejection) ($389) ISM1: Smart Magnetostrictive Input (recommended for Tiger "T" meters) ($287) ISR1: Single Smart 3-Wire Potentiometer, 24 bit, 50 Hz ($250) ISR2: Single Smart 3-Wire Potentiometer, 24 bit, 60 Hz ($250) ISR3: Smart Dual 3-Wire Potentiometer, 16 bit, 50 Hz ($287) ISR4: Smart Dual 3-Wire Potentiometer, 16 bit, 60 Hz ($287) ISS1: Smart Pressure/Load cell. Standard resolution 16bit (50Hz rejection) ($238) ISS2: Smart Pressure/Load cell. Standard resolution 16bit (60Hz rejection) ($238) ISS3: Smart Pressure/Load cell. high resolution and accuracy 24bit (50Hz rejection) ($327) ISS4: Smart Pressure/Load cell. high resolution and accuracy 24bit (60Hz rejection) ($327) ISS5: Dual Smart Pressure/Load Cell. Standard resolution 16 bit (50Hz rejection) ($359) ISS6: Dual Smart Pressure/Load Cell. Standard resolution 16 bit (60Hz rejection) ($359) ISS7: Smart Quad Pressure/Load Cell. 50Hz rejection. ($389) ISS8: Smart Quad Pressure/Load Cell. 60Hz rejection. ($389) ISS9: Smart Dual Input, Load Cell and Process (4-20mA) ($250) ISSA: Smart Quad Potentiometer/ Resistance ($326) ISSB: Smart Dual Input, Load Cell and RTD ($253) ISSC: Smart Triple Input, Load Cell and two Digital Inputs (Frequency/Counter) Optimized for 50Hz. ($290) ISSD: Smart Triple Input, Load Cell and two Digital Inputs (Frequenct/Counter) Optimized for 60Hz. ($290) IST1: Smart 6 Inputs - 3 RTD's, 2 Process and 1 Digital Input. 50Hz. ($331) IST2: Smart 6 Inputs - 3 RTD's, 2 Process and 1 Digital Input. 60Hz. ($331) IST3: Smart Quad Thermocouple. 50Hz. ($331) IST4: Smart Quad Thermocouple. 60Hz. ($331) IST5: Smart Dual RTD with 0.01 degree resolution. 50Hz. ($287) IST6: Smart Dual RTD with 0.01 degree resolution. 60Hz. ($287) IST7: Smart Triple RTD with 0.01 degree resolution(50Hz) ($327) IST8: Smart Triple RTD with 0.01 degree resolution(60Hz). IST8 is the replacement for ITT2. ($327) IT01: Thermocouple (J/K/R/S/T/B/N) (Tiger only) ($93) IT02: RTD, 100Ω Pt. 2, 3, or 4-wire (Tiger only) ($93) IT03: RTD, 100Ω Pt. 2/3/4-wire (-200 to 800°C) (Lynx only) ($93) IT04: RTD, 100Ω Pt. 2/3/4-wire (-200 to 1470°F) (Lynx only) ($93) IT05: RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°F) (Lynx only) ($93) IT06: Thermocouple, J Type (0-1400 °F) (Lynx only) ($93) IT07: Thermocouple, K Type (0-1999 °F) (Lynx only) ($93) IT08: Thermocouple, J Type (0-760 °C) (Lynx only) ($93) IT09: Thermocouple, K Type (0-1260 °C) (Lynx only) ($93) IT10: Thermocouple, J/K/R/T, Selectable °C/°F, 1°/0.1° (Leopard only) ($93) IT11: RTD, 100Ω Pt. Selectable 3/4-wire, °C/°F, 1°/0.1° (Leopard only) ($93) IT12: RTD, 120Ω Nickel 2/3/4-wire (Tiger only) ($93) IT13: RTD, 10Ω Copper 2/3/4-wire (Tiger only) ($93) IT14: RTD, 100Ω Pt. 2/3/4-wire (-199.0 to 199.0°C) (Lynx only) ($93) ITD1: Triple DC Volts, 2V DC ($191) ITD2: Triple DC mV, 50mV DC ($191) ITP1: Triple Process Loop, 4-20mA ($191) ITT1: Triple Thermocouple (J/K/R/S/T/B/N) ($191) ITT2: Triple RTD Platinum 100Ω RTD 2 wire connection. ITT2 has been replaced with the more advanced Smart Input Module IST8. ($191) ITT3: Triple Input, T/C, T/C (J/K/R/S/T/B/N) and 2VDC Input ($191) ITT4: Triple Input, T/C, T/C (J/K/R/S/T/B/N) and 4 to 20mA ($191) ITT7: Triple Input, T/C (J/K/R/S/T/B/N), 2V DC and 2V DC Input ($191) ITT8: Triple Input, T/C (J/K/R/S/T/B/N), 4 to 20mA and 4 to 20mA ($191) ITTC: Triple RTD Platinum 100Ω RTD 4 wire connection ($191) ITTE: Triple Input- RTD / RTD / Frequency ($213) ITTF: Triple Input- Thermocouple / 4-20mA / Frequency ($213) ITTG: Triple Input- Thermocouple / V / Frequency ($213) IW03: DC-Watts, 10V/50mV DC ($125) IW04: Single Phase Power, 600V/1A ($171) IW05: Single Phase Power, 600V/5A ($195) V1C1: Input Voltage: AC 50~300V, Input Current: AC 1A V2C2: Input Voltage: AC 300~600V, Input Current: AC 5A ($64) VYCY: Custom Input Voltage and Input Current ($123) ### Analog Output Modules ADC: Dual Isolated 14 Bit Current Output, 4-20mA (Tiger Series) ($162) ADV: Dual isolated 14 bit voltage output, 0-10VDC ($162) AIC: Isolated 14 Bit Current Output, 4-20mA ($96) AIV: Isolated 14 Bit Voltage Output, 0-10VDC ($96) AIY: Isolated 14 Bit Custom specified Current and Voltage Output. 0-20mA or 0-10VDC. ($118) OIC: Isolated 14 bit, Current output 4-20mA ($86) OIV: Isolated 14 bit voltage output, 0-10V DC ($86) TTC: Single 4-20mA TTCC: Output1 = 4-20mA, Output2 = 4-20mA TTCR: Output1 = 4-20mA, Output2 = RS-485 TTCV: Output1 = 4-20mA, Output2 = 0-10V DC TTV: Single 0-10V DC TTVC: Output1 = 0-10V DC, Output2 = 4-20mA TTVR: Output1 = 0-10V DC, Output2 = RS-485 TTVV: Output1 = 0-10V DC, Output2 = 0-10V DC ### Relay Output Modules OR11: One 10A Form C Relay, Isolated ($59) OR12: Module w/ two isolated 9A Form C relays. All relays outputs are isolated from ground and from the meter. ($106) OR14: Module w/ Two x 9A Form C (sp1&2) and Two x 4A Form A relays (sp3 &4). Sp1 & 3 share common. Sp2 & 4 share 2nd common. All relays outputs are isolated from ground and from the meter. ($168) OR15: One 9A Form C & Two 4A Form A Relays, Non-isolated ($125) OR23: Module w/ Two x 9A Form C (sp1&2) and One 4A Form A. All relays are Isolated ($146) OR25: Module w/ One 9A Form C and Two x 4A Form A. All relays are isolated ($128) OR32: Module w/ Two x 4A Form A relays. All relays outputs are isolated from ground and from the meter. ($93) OR34: Module w/ Four x 4A Form A relays. All relays outputs are isolated from ground and from the meter. ($148) OR46: Module w/ Six x 4A Form A relays. Sp1,2 &3 share common. Sp4,5& 6 share common. All relays outputs are isolated from ground and from the meter. ($203) OR54: Module w/ Four x 210mA 400V DC Solid State Relays (SSR). All relays outputs are isolated from ground and from the meter. ($147) OR62: Module with Two 400V AC (peak) or DC 140mA SSRs ($92) OR65: Module with three SSRs (400V DC, 210mA DC max.) & two 5V TTL outputs (relative to COM function pin). ($151) OR72: Module w/ Six open collector outputs to drive external SSR's or Logic Input Devices, 5VDC 50mA. All relays outputs are isolated from ground and from the meter. ($116) OR81: Module w/ 6 outputs and 6 Inputs opto-isolated open collectors that connect to External Breakout Box, 50VDC 100mA. All relays outputs are isolated from ground and from the meter. T version only ($293) OR82: Module w/ 16 outputs and 6 Inputs opto-isolated open collectors that connect to External Breakout Box, 50VDC 100mA. All relays outputs are isolated from ground and from the meter. T version only ($409) OR91: Data Acquisition module with Removable 2GB SD card and Two NPN Open Collector Outputs( Max 40VDC 100mA). Sp1 & 2 share a common. All relays outputs are isolated from ground and from the meter. ($321) R1: One 4A Form A Relay, Isolated, Factory installed ($49) R11: One 9A Form C Relay, Factory Installed, Isolated ($55) R12: Two x 9A Form C relays on mainboard. All relays outputs are isolated from ground and from the meter. ($116) R13: Two 9A Form C & One 4A Form A Relays, Factory Installed, Non-isolated ($144) R14: Two x 9A Form C (sp1&2) and Two x 4A Form A relays (sp3 &4) on mainboard. All relays outputs are isolated from ground and from the meter. Sp1 & 3 share a common. Sp2 & 4 share a 2nd common. ($180) R15: One 9A Form C & Two 4A Form A Relays, Factory Installed, Non-isolated ($131) R16: One 9A Form C & One 4A Form A Relays, Factory Installed, Non-isolated ($98) R2: Two x 4A Form A relays on mainboard. All relays outputs are isolated from ground and from the meter. ($104) R212: R12 and OR12 together. Relays for setpoint 1&2 on both boards will operate in unison. ($220) R214: R2 and OR14 together. Relays for setpoint 1&2 on both boards will operate in unison. ($262) R234: R2 and OR34 together. Relays for setpoint 1&2 on both boards will operate in unison. ($245) R254: R2 and OR54 together. Relays for setpoint 1&2 on both boards will operate in unison. ($243) R2S2: R12 and module w/Two x 400V DC Solid State Relays (SSR) 210mA. All relays outputs are isolated from ground and from the meter. ($198) R2S4: R12 and OR54 together. Relays for setpoint 1 & 2 on module board and mainboard will operate in unison. ($259) R414: R14 and OR14 together. Relays for setpoint 1, 2, 3 & 4 on module board and main board will operate in unison. ($336) R4S2: R14 and Two x 400V DC Solid State Relays (SSR) 210mA together. All relays outputs are isolated from ground and from the meter. ($256) R4S4: R14 and OR54 together. Relays for setpoint 1, 2, 3 & 4 on module board and main board will operate in unison. ($324) ### Serial Output Modules S1: Isolated USB communication module (Requires a Cable and a Carrier Board and will be added to the order) ($68) S2: Isolated RS-232. (Requires a Cable and a Carrier Board and will be added to the order) ($103) S3: Isolated USB communication module with Micro-B connector and 3’ USB cable (included) ($53) S4: Isolated RS-485 (Requires a Cable and a Carrier Board and will be added to the order) ($116) S485: Isolated ModBus RTU - RS-485 (If the Serial Output S485 is selected, the Analog Output cannot be added.) ($75) S5: Isolated Modbus RTU - RS-232, ASCII Code Compatible. (Requires a Cable and a Carrier Board and will be added to the order) ($116) S6: Isolated ModBus RTU - RS-485, ASCII Code Compatible. (Requires a Cable and a Carrier Board and will be added to the order) ($129) S8: Isolated Ethernet output for DI models only. Includes a special Output Carrier Board that accepts analog outputs and I/O modules. ($245) S9: Modbus Ethernet output for DI models only. Includes a special Output Carrier Board that accepts analog outputs and I/O modules. ($256)

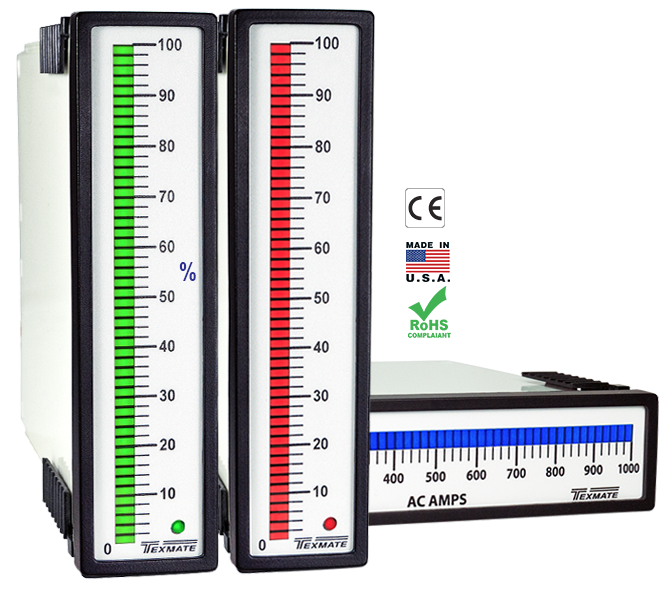

Display	50-segment bargraph
Case Size	9/32
Bezel Dimensions	144mm × 72mm
Panel Cutout	138mm × 68mm
Country of Origin	USA
Certifications	CE,RoHS,BABA,Made in the USA

FB-B50

Specifications

Manuals & Datasheets
