Texmate Panel Meter FL-BDPSF-ACA

See other AC Volt / AC Amp Panel Meters
144x36 metal surround case 144x36 NEMA4X clear cover Digit on Top

FL-BDPSF-ACA

Base Price $348.00

AC Amp, 144x36mm, PSF Meter Bargraph Controller with programmable scale factor. 101 Segment Red, Green or Tricolor bars, with Red or Optional Green 4 Digit LED


Product Information

Download FL-BDPSF-ACA Full Manual (PDF).

Panel Cutout Adapter




Panel Cut-Out Trim Plate Set

equalizer Display Options

VTR $53.00
101 segments, 1mm Tri-Color LED Vertical Bar w/4 Red digits
VTG $60.00
101 segments, 1mm Tri-Color LED Vertical Bar w/4 Green digits
VRRT $22.00
101 segments, 1mm Red LED Vertical Bar w/4 Red digits on top
VRR $0.00
101 segments, 1mm Red LED Vertical Bar w/4 Red digits
VRGT $35.00
101 segments, 1mm Red LED Vertical Bar w/4 Green digits on top
VRG $14.00
101 segments, 1mm Red LED Vertical Bar w/4 Green digits
VGRT $44.00
101 segments, 1mm Green LED Vertical Bar w/4 Red digits on top
VGR $22.00
101 segments, 1mm Green LED Vertical Bar w/4 Red digits
VGGT $57.00
101 segments, 1mm Green LED Vertical Bar w/4 Green digits on top
VGG $35.00
101 segments, 1mm Green LED Vertical Bar w/4 Green digits
VBB $46.00
101 segments, 1mm Blue LED Vertical Bar w/4 Blue digits, Visible under bright sunlight
HTR $60.00
101 segments, 1mm Tri-Color LED Horizontal Bar w/4 Red digits
HTG $66.00
101 segments, 1mm Tri-Color LED Horizontal Bar w/4 Green digits
HRR $11.00
101 segments, 1mm Red LED Horizontal Bar w/4 Red digits
HRG $24.00
101 segments, 1mm Red LED Horizontal Bar w/4 Green digits
HGR $33.00
101 segments, 1mm Green LED Horizontal Bar w/4 Red digits
HGG $42.00
101 segments, 1mm Green LED Horizontal Bar w/4 Green digits
HBB $53.00
101 segments, 1mm Blue LED Horizontal Bar w/4 Blue digits, Visible under bright sunlight
DSTR $60.00

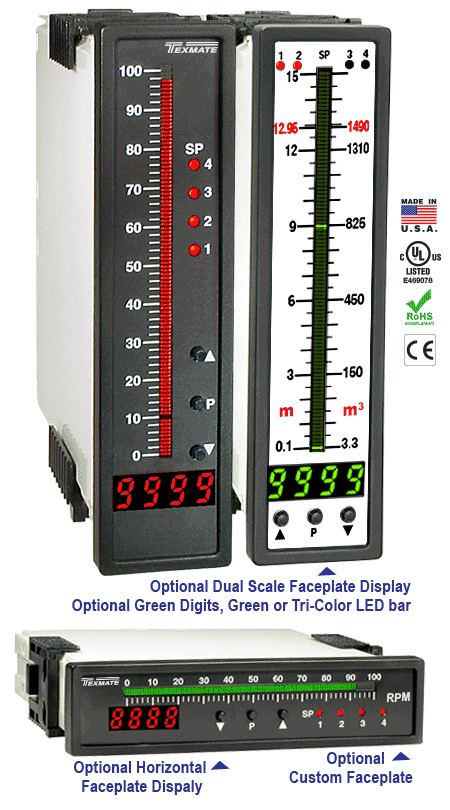

Dual Scale Tricolor LED Bar with 4 Digit Red LED, Vertical orientation
DSTG $72.00
Dual Scale Tricolor LED Bar with 4 Digit Green LED, Vertical orientation
DSRR $7.00
Dual Scale Red LED Bar with 4 Digit Red LED, Vertical
DSRG $20.00
Dual Scale Red LED Bar with 4 Digit Green LED, Vertical
DSGR $24.00
Dual Scale Green LED Bar with 4 Digit Red LED, Vertical
DSGG $38.00
Dual Scale Green LED Bar with 4 Digit Green LED, Vertical

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

AC

Single

IA09 $119.00 AC-Amps True RMS, 1 Amp AC

IA11 $127.00 AC-Amps True RMS, 5 Amp AC

Custom Display Scaling

Qty Custom bar display scaling within standard ranges

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per serial number)
Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Optional Faceplate Color

White background faceplate with black scale of 0 to 100.

Output Custom Scaling

Qty Custom analog output range, for 101Q, 202Q series bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 4 color
One time charge for custom faceplate design with an assigned serial number. (per serial number)

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
