Texmate Panel Meter FX-BQ-PROCESS

See other Process Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FX-BQ-PROCESS

Base Price Call for Price

A Powerful Smart Process Bargraph Meter with Isolated 4-20mA DC or 0-10VDC output
144x36mm, 101 Segment in a 9/64 DIN Case

FX-BQ-PROCESS is being discontinued.
Finite quantity in stock. The Replacement model is FL-BQ-PROCESS.


Product Information

Download FX-BQ-PROCESS Full Manual (PDF).

Panel Cutout Adapter

equalizer Display Options

XVR $0.00

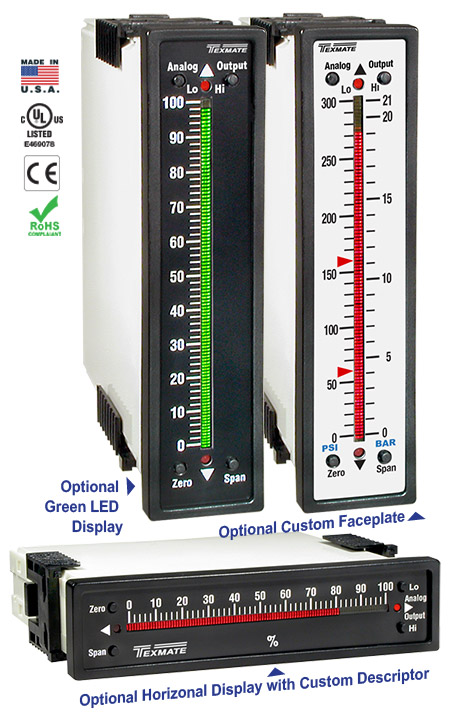

101 segments, 1mm Red LED Bar, Vertical
