Products

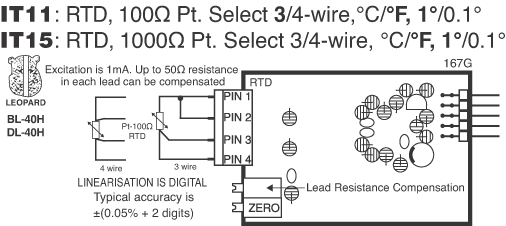

IT11
Input Signal Module
RTD, 100Ω Pt. Selectable
3
/4-wire, °C/
°F
,
1°
/0.1° (Leopard only)
