Texmate Panel Meter FL-B101Q-ACV

See other AC Volt Panel Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FL-B101Q-ACV

Base Price $316.00

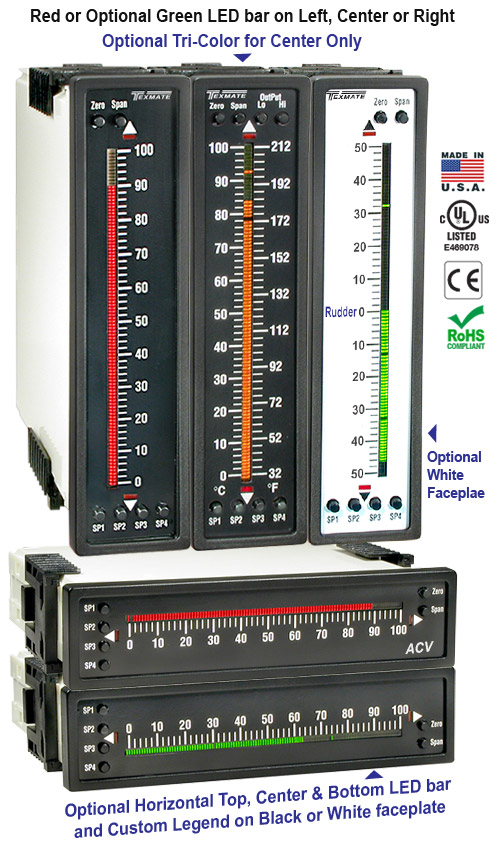

Bargraph Meter, AC Volts with RMS Option, 144x36mm, 101 Segment in a 9/64 DIN CASE
Optional Isolated 16 bit, 4-20mA Current or 0-10V DC Voltage analog output and up to four optional relays.
