Texmate Panel Meter FX-B101Q-ACV

See other AC Volt Panel Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FX-B101Q-ACV

Base Price Call for Price

Bargraph Meter, AC Volts with RMS Option, 144x36mm, 101 Segment in a 9/64 DIN CASE

FX-B101Q-ACV is being discontinued.
Finite quantity in stock. The Replacement model is FL-B101Q-ACV.


Product Information

Download FX-B101Q-ACV Full Manual (PDF).

Panel Cutout Adapter

equalizer Display Options

XVR $0.00

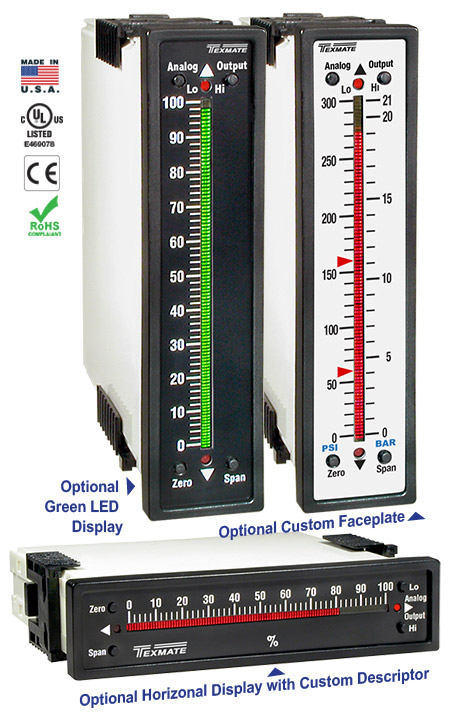

101 segments, 1mm Red LED Bar, Vertical
XVG $22.00
101 segments, 1mm Green LED Bar, Vertical
XVB $28.00
101 segments, 1mm Blue LED Bar, Vertical, Visible under bright sunlight
XHR $11.00
101 segments, 1mm Red LED Bar, Horizontal
XHG $33.00
101 segments, 1mm Green LED Bar, Horizontal
XHB $39.00
101 segments, 1mm Blue LED Bar, Horizontal, Visible under bright sunlight

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Panel Cut-Out Trim Plate Set

Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

AC

Single

IA06 $127.00 AC Volts True RMS, 3 ~ 600V AC

IA3V $127.00 AC Volts True RMS, 30mV ~ 3V AC
