Texmate Panel Meter FX-B101Q-DCA

See other DC Amp Panel Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FX-B101Q-DCA

Base Price Call for Price

DC Amps 101 Segment (red or green) Bargraph with optional Isolated 4-20mA DC or 0-10VDC output, 144x36mm, 101 Segment in a 9/64 DIN CASE. Select ID02, DC-Millivolt, 20/50/100/200mV DC for use with external shunts (100mV shunt is standard). Select ID09 with 1A internal shunt or ID04 with 5A internal shunt, both suitable for direct measurement of up to 1A DC or 5A DC.

FX-B101Q-DCA is being discontinued.
Finite quantity in stock. The Replacement model is FL-B101Q-DCA.


Product Information

Download FX-B101Q-DCA Full Manual (PDF).

Panel Cutout Adapter

equalizer Display Options

XVR $0.00

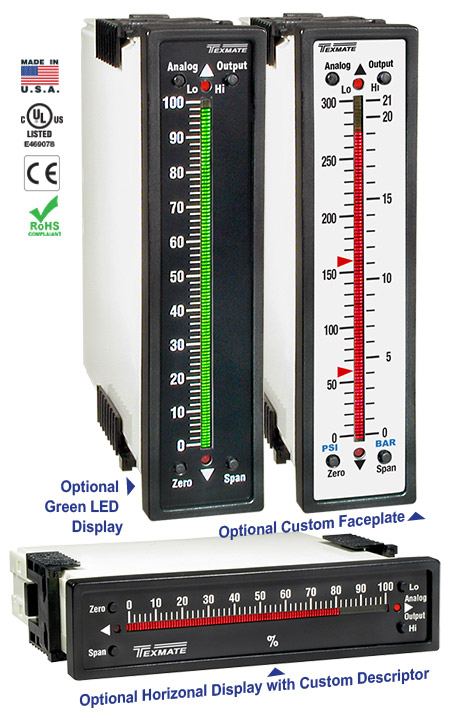

101 segments, 1mm Red LED Bar, Vertical
