Texmate Panel Meter FX-B101Q-DCV

See other DC Volt Panel Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FX-B101Q-DCV

Base Price Call for Price

A Powerful Smart DCA Bargraph with optional Isolated 4-20mA DC or 0-10VDC output, 2/20/200V DC Meter, 144x36mm, 101 Segment in a 9/64 DIN CASE

FX-B101Q-DCV is being discontinued.
Finite quantity in stock. The Replacement model is FL-B101Q-DCV.


Product Information

Download FX-B101Q-DCV Full Manual (PDF).

Panel Cutout Adapter

equalizer Display Options

XVR $0.00

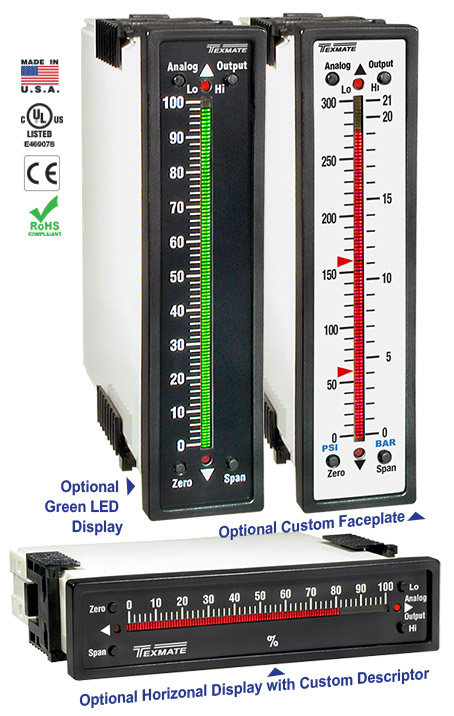

101 segments, 1mm Red LED Bar, Vertical
XVG $22.00
101 segments, 1mm Green LED Bar, Vertical
XVB $28.00
101 segments, 1mm Blue LED Bar, Vertical, Visible under bright sunlight
XHR $11.00
101 segments, 1mm Red LED Bar, Horizontal
XHG $33.00
101 segments, 1mm Green LED Bar, Horizontal
XHB $39.00
101 segments, 1mm Blue LED Bar, Horizontal, Visible under bright sunlight

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Panel Cut-Out Trim Plate Set

Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

DC and Process

Single

ID01 $75.00 DC-Volts, 2/20/200V/Custom w/24V DC Exc

ID05 $93.00 DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc.

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Optional Faceplate Color

White background faceplate with black scale of 0 to 100.

Output Custom Scaling

Qty Custom analog output range, for 101Q, 202Q series bargraphs

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
