BN-45     Dimmable

Base Price $326.00

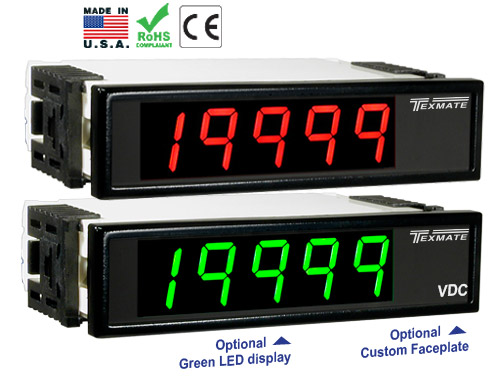

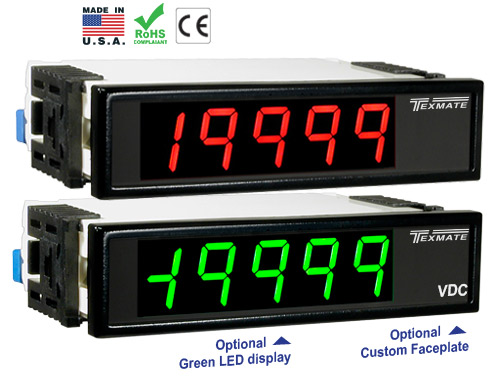

The BN-45 is pin to pin compatible with the Newport model 2520. The BN-45 is the big brother to the BM-35 series meters, with a 4 1/2 digit dimmable voltmeter in a compact 96x24mm case with non-isolated 5VDC power. The case has a short depth of just 2.83 inches (72mm) behind the panel. The meter has three user-selectable ranges of 2V, 20V and 200V. The BN-45 may also be calibrated at the factory for these ranges or specially scaled for other ranges (see Ordering Infor- mation below). Provision to offset the zero is also available as an option for 4-20mA signals. The display is shipped standard with red LEDs, but green LEDs or super bright LEDs for high ambient light environments are also offered. Display Segments Test, Display Blank and Hold Reading are standard features.

Features & Specifications

Download BN-45 Features & Specifications (PDF).

Download Newport's 2520 and Texmate's BN-45 Features Comparison Table.

Product Information

Download BN-45 Full Manual (PDF).

equalizer Display Options

BN-RED $0.00
Red LED Display
BN-GREEN4 $28.00
4.5 digit, Green LED Display
BN-BLUE $28.00
Blue LED Display, Visible under bright sunlight

Choose Your Options ▲

Choose Your Options ▼

Custom Display Scaling

Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services


Input Range Change

Zero offset 50K Potentiometer.
Range change from 0 to 200DCV. Default display scaling 199.99, choose ZS for a different scaling.
Range change from 0 to 20DCV. Default display scaling 19.999, choose ZS for a different scaling.
Factory default input 0 to 2V DC. Default display scaling 1.9999, choose ZS for a different scaling.

4" Switchboard Panel Mounting Adapter Plate

Cases and Case Accessories


Descriptor Adhesive

Metal Surround and Mounting Kit

Power Supply
