BN-45I     Dimmable

Base Price $397.00

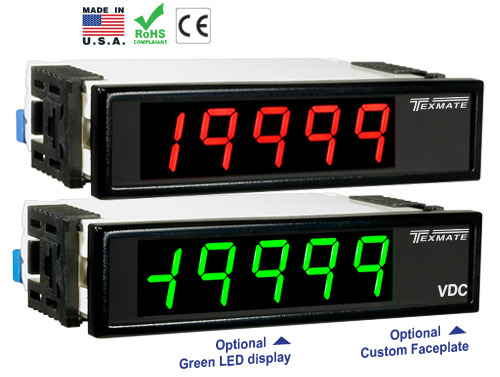

The BN-45I is a 41⁄2 digit dimmable voltmeter in a 9-36VDC compact 96x24mm case with isolated 24VDC power. Another version of the BN-45I, model BN-45, is also available with a non-isolated 5VDC power. The case has a short depth of just 2.83 inches (72mm) behind the panel. The meter has three user-selectable ranges of 2V, 20V and 200V. The BN-45I may also be calibrated at the factory for these ranges or specially scaled for other ranges (see Ordering Infor- mation below). Provision to offset the zero is also available as an option for 4-20mA signals. The display is shipped standard with red LEDs, but green LEDs or super bright LEDs for high ambient light environments are also offered. Display Segments Test, Display Blank and Hold Reading are standard features.

Features & Specifications

Download BN-45I Features & Specifications (PDF).

Product Information

Download BN-45I Full Manual (PDF).

equalizer Display Options

BN-RED $0.00
Red LED Display
BN-GREEN4 $28.00
4.5 digit, Green LED Display
BN-BLUE $28.00
Blue LED Display, Visible under bright sunlight

power_input Power Supply

PS11D $55.00
48VDC Isolated 1.5kV auto-sensing 36-75 VDC. Approx.1W
PS7D $0.00
12VDC and 24VDC Isolated 1.5kV auto-sensing 9-36VDC. Approx.1W

Choose Your Options ▲


Choose Your Options ▼

Custom Display Scaling

Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Zero offset 50K Potentiometer.
Range change from 0 to 200DCV. Default display scaling 199.99, choose ZS for a different scaling.
Range change from 0 to 20DCV. Default display scaling 19.999, choose ZS for a different scaling.
Factory default input 0 to 2V DC. Default display scaling 1.9999, choose ZS for a different scaling.

4" Switchboard Panel Mounting Adapter Plate

Cases and Case Accessories

Connectors

Descriptor Adhesive

Metal Surround and Mounting Kit

Power Supply
