Texmate Panel Meter FL-B101D40PF





144x36 metal surround case 144x36 NEMA4X clear cover Digit on Top

FL-B101D40PF

Base Price $348.00

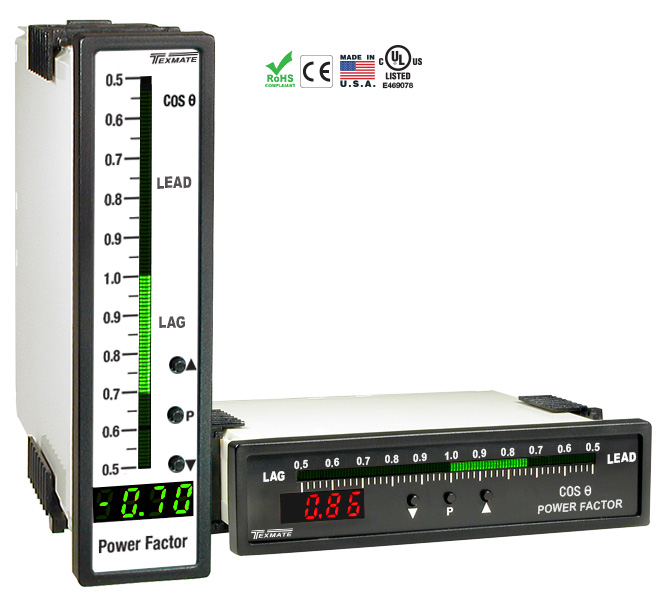

Power Factor Bargraph Indicator, 144x36mm, 101 Segment with Red or Optional Green 4-digit LED display.

This unit accepts an analog DC signal from a Power Factor transducer, ranging from 4-20mA, 0-1mA, 2VDC, 5VDC, and 10VDC.

It provides a bargraph and digital display of the reading in the format customary for Power Factor meters with the bargraph centered at PF=1.0.

Lead and lag are indicated by the bargraph extending upward (lead) or downward (lag) with cos(theta) scale markings from LAG 0.5 to1.0 to LEAD 0.5.

The digital display provides a corresponding numeric readout of the same data with LAG represented by negative sign.

Features & Specifications

Download FL-B101D40PF Features & Specifications (PDF).

Product Information

Download FL-B101D40PF Full Manual (PDF).

Panel Cut-Out Trim Plate Set

equalizer Display Options

VRRT $22.00
101 segments, 1mm Red LED Vertical Bar w/4 Red digits on top
VRR $0.00
101 segments, 1mm Red LED Vertical Bar w/4 Red digits
VRGT $35.00
101 segments, 1mm Red LED Vertical Bar w/4 Green digits on top
VRG $14.00
101 segments, 1mm Red LED Vertical Bar w/4 Green digits
VGRT $44.00
101 segments, 1mm Green LED Vertical Bar w/4 Red digits on top
VGR $22.00
101 segments, 1mm Green LED Vertical Bar w/4 Red digits
VGGT $57.00
101 segments, 1mm Green LED Vertical Bar w/4 Green digits on top
VGG $35.00
101 segments, 1mm Green LED Vertical Bar w/4 Green digits
VBB $46.00
101 segments, 1mm Blue LED Vertical Bar w/4 Blue digits, Visible under bright sunlight
HRR $11.00
101 segments, 1mm Red LED Horizontal Bar w/4 Red digits
HRG $24.00
101 segments, 1mm Red LED Horizontal Bar w/4 Green digits
HGR $33.00
101 segments, 1mm Green LED Horizontal Bar w/4 Red digits
HGG $42.00
101 segments, 1mm Green LED Horizontal Bar w/4 Green digits
HBB $53.00
101 segments, 1mm Blue LED Horizontal Bar w/4 Blue digits, Visible under bright sunlight
DSTR $60.00
Dual Scale Tricolor LED Bar with 4 Digit Red LED, Vertical orientation
DSTG $72.00
Dual Scale Tricolor LED Bar with 4 Digit Green LED, Vertical orientation
DSRR $7.00
Dual Scale Red LED Bar with 4 Digit Red LED, Vertical
DSRG $20.00
Dual Scale Red LED Bar with 4 Digit Green LED, Vertical
DSGR $24.00
Dual Scale Green LED Bar with 4 Digit Red LED, Vertical
DSGG $38.00
Dual Scale Green LED Bar with 4 Digit Green LED, Vertical

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Panel Cutout Adapter

Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type.

DC and Process

Single

IP07 $86.00 Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Faceplates for Bargraphs

Black print on white faceplate.
White print on black faceplate.

Engineering Services

$

Optional Faceplate Color

White background faceplate with black scale of 0 to 100.

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
