Texmate Panel Meter FL-B101Q-ACA

See other AC Volt / AC Amp Panel Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FL-B101Q-ACA

Base Price $316.00

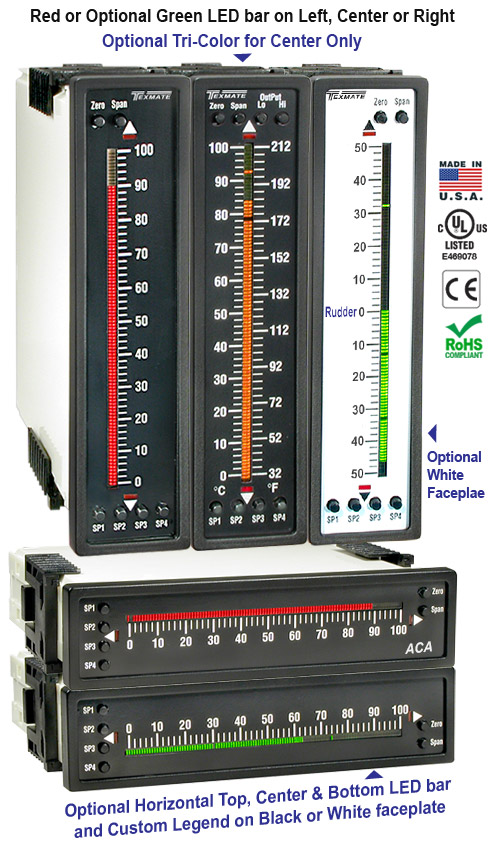

Bargraph Meter, AC Amps with RMS Option, Analog current or voltage outputs and up to four relays outputs, 144x36mm, 101 Segment in a 9/64 DIN CASE


Product Information

Download FL-B101Q-ACA Full Manual (PDF).

Panel Cutout Adapter




Panel Cut-Out Trim Plate Set

equalizer Display Options

THR $11.00
101 segments, 1mm Red LED Bar, Horizontal, Top position
THG $33.00
101 segments, 1mm Green LED Bar, Horizontal, Top position
THB $39.00
101 segments, 1mm Blue LED Bar, Horizontal, Top position, Visible under bright sunlight
RVR $0.00
101 segments, 1mm Red LED Bar, Vertical, Right side
RVG $22.00
101 segments, 1mm Green LED Bar, Vertical, Right side
RVB $28.00
101 segments, 1mm Blue LED Bar, Vertical, Right side, Visible under bright sunlight
LVR $0.00
101 segments, 1mm Red LED Bar, Vertical, Left side
LVG $22.00
101 segments, 1mm Green LED Bar, Vertical, Left side
LVB $28.00
101 segments, 1mm Blue LED Bar, Vertical, Left side, Visible under bright sunlight
CVT $44.00
101 segments, 1mm Tri-Color LED Bar, Vertical, Center position
CVR $0.00
101 segments, 1mm Red LED Bar, Vertical, Center position
CVG $22.00
101 segments, 1mm Green LED Bar, Vertical, Center position
CVB $28.00
101 segments, 1mm Blue LED Bar, Vertical, Center position, Visible under bright sunlight
CHT $55.00
101 segments, 1mm Tri-Color LED Bar, Horizontal, Center position
CHR $11.00
101 segments, 1mm Red LED Bar, Horizontal, Center position
CHG $33.00
101 segments, 1mm Green LED Bar, Horizontal, Center position
CHB $39.00
101 segments, 1mm Blue LED Bar, Horizontal, Center position, Visible under bright sunlight
BHR $11.00
101 segments, 1mm Red LED Bar, Horizontal, Bottom position
BHG $33.00
101 segments, 1mm Green LED Bar, Horizontal, Bottom position
BHB $39.00
101 segments, 1mm Blue LED Bar, Horizontal, Bottom position, Visible under bright sunlight

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

AC

Single

IA09 $119.00 AC-Amps True RMS, 1 Amp AC

IA11 $127.00 AC-Amps True RMS, 5 Amp AC

Custom Display Scaling

Qty Custom bar display scaling within standard ranges

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per serial number)
Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Output Custom Scaling

Qty Custom analog output range, for 101Q, 202Q series bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 4 color
One time charge for custom faceplate design with an assigned serial number. (per serial number)

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
