FL-BDPSF-DCA

Base Price $253.00

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under Special Options tab.

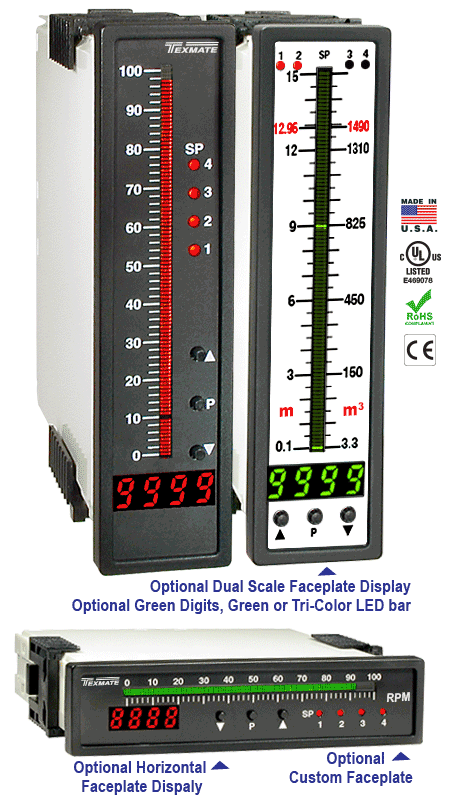

DC Amps, Built-in Programmable Scale Factor, 144x36mm, Meter Bargraph Controller. 101 Segment Red, Green or Tricolor bars, with Red or Optional Green 4 Digit LED.

Product Information

Download FL-BDPSF-DCA Full Manual (PDF).

Display Options

VTR $50.00
Tri-Color Vertical Bar w/4 Digit Red DPM

VTG $60.00
Tri-Color Vertical Bar w/4 Digit Green DPM

VRRT $22.00
Red LED Vertical Bar w/4 Digit Red DPM

VRR $0.00
Red LED Vertical Bar w/4 Digit Red DPM

VRGT $30.00
Red LED Vertical Bar w/4 Digit Green DPM

VRG $12.00
Red LED Vertical Bar w/4 Digit Green DPM

VGRT $30.00
Green LED Vertical Bar w/4 Digit Red DPM

VGR $18.00
Green LED Vertical Bar w/4 Digit Red DPM

VGGT $35.00
Green LED Vertical Bar w/4 Digit Green DPM

VGG $28.00
Green LED Vertical Bar w/4 Digit Green DPM

HTR $55.00
Tri-Color Horizontal Bar w/4 Digit Red DPM

HTG $66.00
Tri-Color Horizontal Bar w/4 Digit Green DPM

HRR $6.00
Red LED Horizontal Bar w/4 Digit Red DPM

HRG $18.00
Red LED Horizontal Bar w/4 Digit Green DPM

HGR $22.00
Green LED Horizontal Bar w/4 Digit Red DPM

HGG $33.00
Green LED Horizontal Bar w/4 Digit Green DPM

DSTR $55.00
Dual Scale Tricolor LED Bar with 4 Digit Red LED, Vertical orientation

DSTG $66.00
Dual Scale Tricolor LED Bar with 4 Digit Green LED, Vertical orientation

DSRR $6.00
Dual Scale Red LED Bar with 4 Digit Red LED, Vertical

DSRG $18.00
Dual Scale Red LED Bar with 4 Digit Green LED, Vertical

DSGR $22.00
Dual Scale Green LED Bar with 4 Digit Red LED, Vertical

DSGG $34.00
Dual Scale Green LED Bar with 4 Digit Green LED, Vertical

Power Supply

PS1 $0.00
85-265VAC/95-300VDC

PS2 $40.00
15-48VAC/10-72VDC

Choose Your Options ▲

Choose Your Options ▼

Inputs 1
Analog Outputs 2
Serial Outputs 0
Relay Outputs 8
Special Options &
Custom Calibration 11
Accessories 14

DC and Process

Single

ID02 $63.00 DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc ($8 of IC shortage surcharge included)

None

OIC $68.00 Isolated 14 bit, Current output 4-20mA ($12 of IC shortage surcharge included)

OIV $68.00 Isolated 14 bit voltage output, 0-10V DC ($12 of IC shortage surcharge included)

None

R1 $41.00 One 4A Form A Relay, Isolated, Factory installed

R11 $46.00 One 9A Form C Relay, Factory Installed, Isolated

R12 $87.00 Two on board 9A Form C relays, isolated

R13 $121.00 Two 9A Form C & One 4A Form A Relays, Factory Installed, Non-isolated

R14 $149.00 Two on board 9A Form C (sp1&2) and Two 4A Form A relays (sp3 &4), non-isolated. sp1 & 3 share common connection. sp2 & 4 share common connection.

R15 $105.00 One 9A Form C & Two 4A Form A Relays, Factory Installed, Non-isolated

R16 $81.00 One 9A Form C & One 4A Form A Relays, Factory Installed, Non-isolated

R2 $75.00 Two on board 4A Form A relays, isolated

Custom Display Scaling

CS-BAR $17.00 Qty Custom bar display scaling within standard ranges

ZS $24.00 Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

ART-RECOVER $50.00 Artwork Data Recovery Fee (per order)

Custom Legend on non-membrane type faceplate

Z-DESCRIPTOR $25.00 Custom Meter Descriptor

Engineering Services

OP-CUSTOM $ Qty

Input Range Change

ZR $20.00 Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Output Custom Scaling

ZS-AOB $45.00 Qty Custom analog output range, for 101Q, 202Q series bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

ART-FS1 $40.00 Produce and install custom faceplate per meter - 1 color

ART-FS2 $45.00 Produce and install custom faceplate per meter - 2 color

ART-FS4 $60.00 Produce and install custom faceplate per meter - 4 color

ART-NRC-DEC $100.00 NRC for Artwork & set-up Custom Faceplate and/or Descriptor (per order)

Cases and Case Accessories

75-DBZ144X36 $5.00 Black Bezel for 144x36mm Case

75-DMC14436B $10.00 Mounting Slide Clips - Wide (2 pc) 144x36mm Case Size

75-DMC144X36 $10.00 Mounting Side Clips - Standard (2 pc) Extra Set, 144x36mm Case Size

OP-MTL144X36 $28.00 Metal Surround Case. THE "OP-MTLCLIP" (2pc Screw mounting clips) BELOW WILL ALSO BE SELECTED, AS THEY ARE NECESSARY TO INSTALL THE METAL CASE.

OP-MTLCLIP $10.00 Screw Mounting Clips (2pc) to screw tighten slide brackets

OP-PA/144X36 $24.00 Panel Adapter for 144x36mm meter to fit 6" Edgewise panel cutout

Connectors

93-PLUG2P-DP $3.00 Extra Screw Terminal Connector, 2 Pin Power Plug

93-PLUG2P-DR $3.00 Extra Screw Terminal Connector, 2 Pin Plug

93-PLUG3P-DR $5.00 Extra Screw Terminal Connector, 3 Pin Plug

93-PLUG4P-DR $6.00 Extra Screw Terminal Connector, 4 Pin Plug

93-PLUG5P-DR $7.00 Extra Screw Terminal Connector, 5 Pin Plug

93-PLUG6P-DR $8.00 Extra Screw Terminal Connector, 6 Pin Plug

Descriptor Adhesive

75-DESCRIPTR $4.00 Clear adhesive descriptors label for face plate

NEMA-4X Clear Lockable Water and Dust Proofing Cover

OP-N4/144X36 $35.00 144x36mm clear lockable splash proof front cover - NEMA 4X
