Texmate Panel Meter FL-BQ-PROCESS

See other Process Meters
144x36 metal surround case 144x36 NEMA4X clear cover

FL-BQ-PROCESS

Base Price $348.00

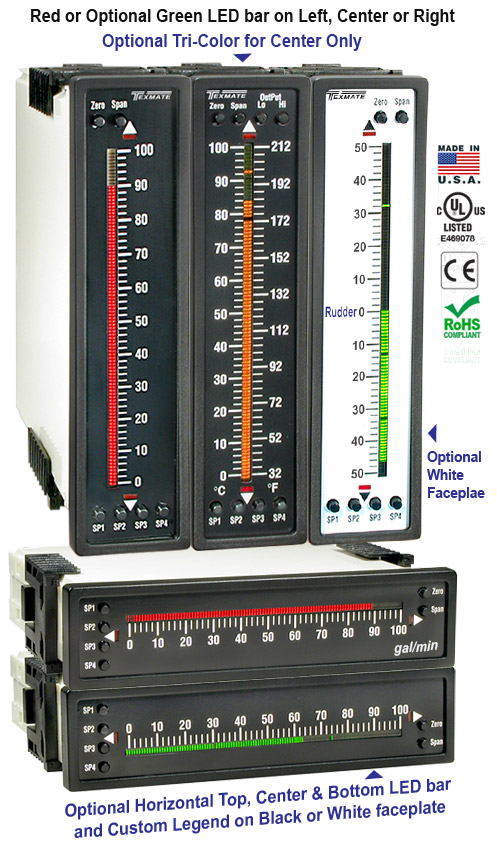

Smart mono-color digital bargraph with four fully programmable set points for monitoring, measurement, and control applications. 144x36mm, 101 Segment


Product Information

Download FL-BQ-PROCESS Full Manual (PDF).

Panel Cutout Adapter




Panel Cut-Out Trim Plate Set

equalizer Display Options

THR $11.00
101 segments, 1mm Red LED Bar, Horizontal, Top position
THG $33.00
101 segments, 1mm Green LED Bar, Horizontal, Top position
RVR $0.00
101 segments, 1mm Red LED Bar, Vertical, Right side
RVG $22.00
101 segments, 1mm Green LED Bar, Vertical, Right side
LVR $0.00
101 segments, 1mm Red LED Bar, Vertical, Left side
LVG $22.00
101 segments, 1mm Green LED Bar, Vertical, Left side
CVT $44.00
101 segments, 1mm Tri-Color LED Bar, Vertical, Center position
CVR $0.00
101 segments, 1mm Red LED Bar, Vertical, Center position
CVG $22.00
101 segments, 1mm Green LED Bar, Vertical, Center position
CHT $55.00
101 segments, 1mm Tri-Color LED Bar, Horizontal, Center position
CHR $11.00
101 segments, 1mm Red LED Bar, Horizontal, Center position
CHG $33.00
101 segments, 1mm Green LED Bar, Horizontal, Center position
BHR $11.00
101 segments, 1mm Red LED Bar, Horizontal, Bottom position
BHG $33.00
101 segments, 1mm Green LED Bar, Horizontal, Bottom position

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

DC and Process

Single

ID01 $75.00 DC-Volts, 2/20/200V/Custom w/24V DC Exc

ID05 $93.00 DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc.

Process

Single

IP01 $75.00 Process Loop, 4-20mA

IP02 $86.00 Process Loop, 4-20mA with 24VDC Exc

Custom Display Scaling

Qty Custom bar display scaling within standard ranges

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per serial number)
Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Optional Faceplate Color

White background faceplate with black scale of 0 to 100.

Output Custom Scaling

Qty Custom analog output range, for 101Q, 202Q series bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 4 color
One time charge for custom faceplate design with an assigned serial number. (per serial number)

Cases and Case Accessories

Connectors

Descriptor Adhesive

NEMA-4X Clear Lockable Water and Dust Proofing Cover
