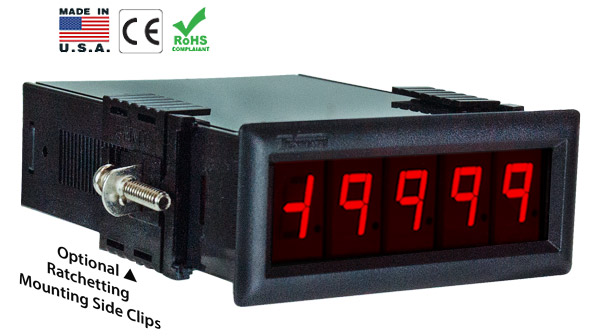

Texmate Panel Meter PM-45-DCV

See other DC Volt / DC Amp Panel Meters

PM-45-DCV

Base Price $224.00

The PM-45-DCV is a wide input range, differential or single-ended, 4.5-digit (± 19999 reading) digital panel meter. The standard input is 2V with optional ranges of 200mV, 20V, 200V and 1200V DC.

The PM-45-DCV is non-isolated 5V powered with optional choices of isolated 5V or autosensing 9-36VDC or 36-75VDC power supply. All with 1.5kV isolation for your 12V, 24V, and 48VDC applications. The 1200VDC input option must be ordered with an isolated power supply.

Display Test, Hold Reading and Decimal Point selection are standard features.

Great for High Voltage EV Battery and Solar Battery Range


Product Information

Download PM-45-DCV Full Manual (PDF).

equalizer Display Options

PM-RED $0.00
Red LED, 0.44" (11mm) high

power_input Power Supply

PSI5 $35.00
5 VDC @ 150mA, Isolated (1.5kV), ~1W
PS75 $56.00
Isolated auto-sensing 9-75VDC. 1.5kV ~1W. Universal Low Voltage
PS48 $54.00
Isolated auto-sensing 36-75VDC, 1.5kV ~1W. 48VDC nominal
PS24 $54.00
Isolated auto-sensing 12-36VDC, 1.5kV ~1W. 24VDC nominal
PS12 $54.00
Isolated auto-sensing 9-18VDC, 1.5kV ~1W. 12VDC nominal
PS05 $0.00
5 VDC, non-isolated, ~0.75W

Choose Your Options ▲


Choose Your Options ▼

Custom Display Scaling

Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Engineering Services

$

Input Range Change

Zero offset 50K Potentiometer.
Range change from 0 to 1200V DC. Default display scaling 1200.0, choose ZS for a different scaling.
Factory default input 0 to 200mV DC. Default display scaling 199.99, choose ZS for a different scaling.
Factory default input 0 to 200V DC. Default display scaling 199.99, choose ZS for a different scaling.
Factory default input 0 to 20V DC. Default display scaling 19.999, choose ZS for a different scaling.
Factory default input 0 to 2V DC. Default display scaling 1.9999, choose ZS for a different scaling.

Cases and Case Accessories

Connectors
