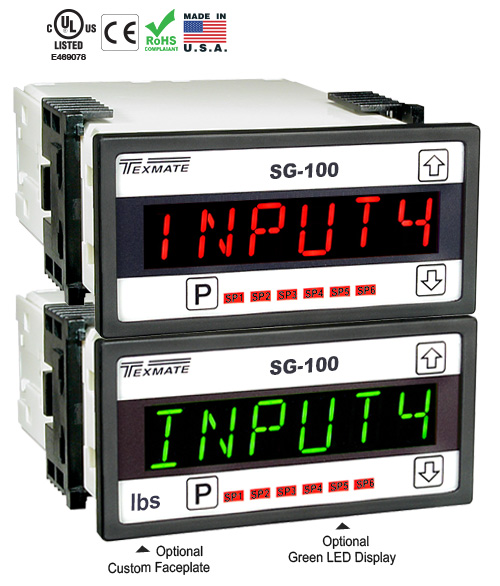

Texmate Panel Meter SG-100





SG-100

Base Price $844.00

Weighing, Load Cell Controller, 96x48mm, Tiger, 6 Digit, Alphanumeric, 96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61")
Custom Meter Program #: CMP-00154


Product Information

Download SG-100 Full Manual (PDF).

equalizer Display Options

DR $0.00
Red LED
DG $28.00
Green LED

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

Load Cell

Single

ISS3 $327.00 Smart Pressure/Load cell. high resolution and accuracy 24bit (50Hz rejection)

ISS4 $327.00 Smart Pressure/Load cell. high resolution and accuracy 24bit (60Hz rejection)

Custom Configuration

Install custom configuration file - Tiger
Custom Configuration serial#
$ Factory installation - macro program, specify serial number: Macro serial#

Custom Display Scaling

Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per serial number)
Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$ One time charge to set up configuration file and assign configuration serial number.
$

Memory Upgrade and Real Time Clock Options

1Mb EEPROM with Real Time Clock

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color

4" Switchboard Panel Mounting Adapter Plate

Cables and Serial Communications

Cases and Case Accessories

Connectors

Descriptor Adhesive

External DIN Rail Mounting Breakout Box

High Strength Panel Mounting Adapter Kit

Metal Surround and Mounting Kit

NEMA-4X Clear Lockable Water and Dust Proofing Cover

NEMA-4X Panel to Case Seal Adapters

Short Depth 96x48 Remote Displays

Utility Software
