BN-45-DCV Dimmable
Base Price $316.00
The BN-45 is pin-to-pin compatible with the Newport model 2520. The BN-45 is the big brother to the BN-35 series meters, with a 4.5-digit display. It is a short-depth dimmable voltmeter with a non-isolated 5VDC power supply in a compact 96x24mm case that has a short depth of just 2.83 inches (72mm) behind the panel.
The meter has four common input ranges of 2V (standard), and optional 20V, 200V or 200mVDC. An optional 1200VDC range is also available. Choose the BN-45I model for this option. Other ranges and special scaling can be ordered and calibrated at the factory (see Special Options & Custom Calibration tab below). Provision to offset the zero is also available as an option, including different offset ranges.

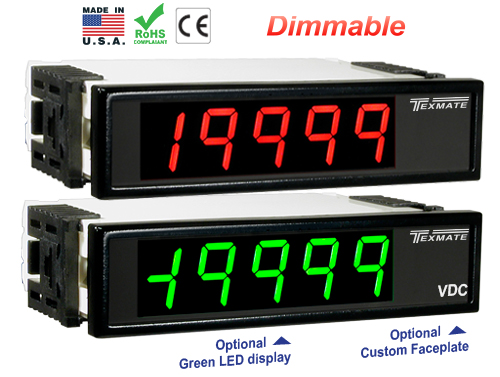

The display is shipped standard with red LEDs. Blue LEDs that are visible under bright sunlight, and green LEDs are also offered. Display Test, Dim/Blank, and Hold Reading are standard features.
Need 5V, 24V or 48V isolation? See our BN-45I offerings.
