Texmate Panel Meter DL-40-RTD

See other Temperature Meters

NEMA 4X clear cover

DL-40-RTD

Base Price $246.00

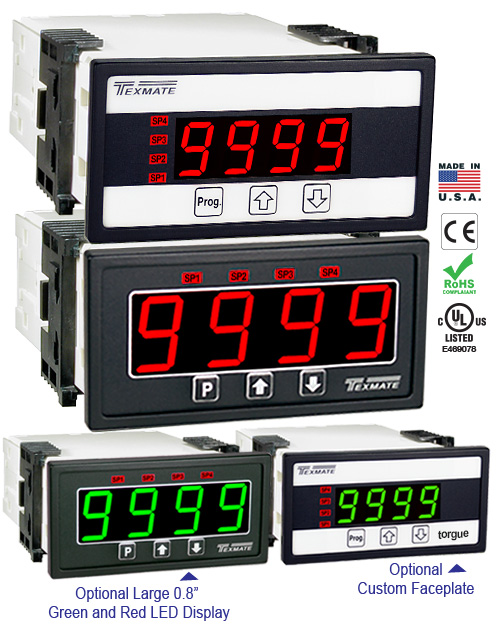

96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), Temperature Meter, Red or Optional Green or Super bright 4 Digit LED in a 1/8 DIN Case

Features & Specifications

Download DL-40-RTD Features & Specifications (PDF).

Product Information

Download DL-40-RTD Full Manual (PDF).

NEMA metal surround case

equalizer Display Options

LR $31.00
Large Red LED, 0.8 inch high
LG $44.00
Large Green LED, 0.8 inch high
DR $0.00
Red LED
DG $28.00
Green LED
DB $22.00
Super-bright Red LED

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

Temperature

Single

IT11 $93.00 RTD, 100Ω Pt. Selectable 3/4-wire, °C/°F, 1°/0.1° (Leopard only)

void Input

None

IX00 $0.00 Input Omitted. Only applicable to Auto and Manual loader meters.

Custom Faceplates and Labels for Meters

Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$

Output Custom Scaling

Qty Custom analog output range for digital meters and bargraphs

4" Switchboard Panel Mounting Adapter Plate

Cases and Case Accessories

Connectors

Descriptor Adhesive

High Strength Panel Mounting Adapter Kit

Metal Surround and Mounting Kit

NEMA-4X Clear Lockable Water and Dust Proofing Cover

NEMA-4X Panel to Case Seal Adapters
