Texmate Panel Meter Controller DI-60XE





Texmate Tiger Configuration Utility

Open Tiger Meter/Controller Configuration Utility Instruction (PDF)

Download Free Tiger Meter/Controller Configuration Utility Software for Windows
(This software requires a Serial Output option
in order to be used. No technical support is offered for this software.)

DI-60XE

Base Price $573.00

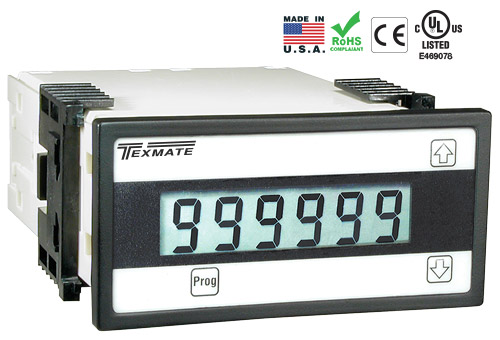

96x48mm (3.78"x1.89"), Depth behind bezel: 117mm (4.61"), 6 digit, LCD display, E version

Features & Specifications

Download DI-60XE Features & Specifications (PDF).

Product Information

Download DI-60XE Full Manual (PDF).

Certifications, Awards, and Listings

The DI-60XE is UL Listed.

equalizer Display Options

DX $0.00
LCD Display

power_input Power Supply

PS1 $0.00
85-265VAC/95-300VDC
PS2 $55.00
15-48VAC/10-72VDC

Choose Your Options ▲


96x48 metal surround and NEMA4X clear cover

Choose Your Options ▼

* One input module needs to be selected to complete the order.
* Factory pre-installed range is in bold type. For other standard ranges, select ZR under the Special Options tab.

AC

Single

IA06 $127.00 AC Volts True RMS, 3 ~ 600V AC

IA07 $127.00 AC mV True RMS, 3 ~ 200mV

IA08 $119.00 AC-mA True RMS, 2/20/200mA AC

IA09 $119.00 AC-Amps True RMS, 1 Amp AC

IA11 $127.00 AC-Amps True RMS, 5 Amp AC

IA3V $127.00 AC Volts True RMS, 30mV ~ 3V AC

Combinations - Multi-Input

Dual

IDD5 $129.00 Dual Input DC Volts and 4-20 mA 2V/4-20mA DC

IDD6 $129.00 Dual Input DC mV and 4-20 mA 50mV/4-20mA DC

IDP2 $152.00 Dual Input, 3-wire RTD and 4-20mA

IDP3 $141.00 Dual Input, Thermocouple (J/K/R/S/T/B/N) and 4-20mA

IDS3 $178.00 Dual Input, Strain Gage and Frequency

IDT3 $152.00 Dual Input, 3-wire RTD and DCV

IDT4 $141.00 Dual Input, Thermocouple (J/K/R/S/T/B/N) and 2VDC Input

IDT6 $174.00 Dual Input, Thermocouple and Load Cell

ISS9 $250.00 Smart Dual Input, Load Cell and Process (4-20mA)

ISSB $253.00 Smart Dual Input, Load Cell and RTD

Triple

ITT3 $191.00 Triple Input, T/C, T/C (J/K/R/S/T/B/N) and 2VDC Input

ITT4 $191.00 Triple Input, T/C, T/C (J/K/R/S/T/B/N) and 4 to 20mA

ITT7 $191.00 Triple Input, T/C (J/K/R/S/T/B/N), 2V DC and 2V DC Input

ITT8 $191.00 Triple Input, T/C (J/K/R/S/T/B/N), 4 to 20mA and 4 to 20mA

Quad

IQT5 $213.00 Quad RTD / V / V / Frequency

Counter/Pulse

Single

IC02 $228.00 Smart Counter (Quadrature)

IC03 $245.00 Smart Quadrature Counter with dual SSRs

Dual

IDC1 $152.00 Dual UP/DOWN Counter

DC and Process

Single

ID01 $75.00 DC-Volts, 2/20/200V/Custom w/24V DC Exc

ID02 $86.00 DC-Millivolt, 20/50/100/200mV DC w/24V DC Exc

ID03 $86.00 DC-Milliamp, 2/20/200mA DC w/24V DC Exc

ID04 $105.00 DC-Amps, 5A DC

ID05 $93.00 DC-Volts 2/20/200/Custom V DC w/Offset and 24V Exc.

ID06 $82.00 DC-Volts 2/20/200/Custom V DC w/Ext.Decimal Select

ID07 $87.00 DC-Milliamp, 2/20/200mA DC w/Offset and 24V Exc

ID08 $87.00 DC-Volts, 2/20/200/Custom V DC w/Ext.LIN Table Select

ID09 $105.00 DC-Amps, 1A DC

IP07 $86.00 Universal Process 2V/5V/10V/20V/200V/2mA/20mA/Custom

IP08 $105.00 Universal Process Input with Autocal 2V/5V/10V/20V/200V/2mA/20mA/Custom

Dual

IDD1 $123.00 Dual DC/Volts, 2V DC

IDD2 $129.00 Dual DC-Millivolts, 50mV DC

IDD3 $129.00 Dual DC-Milliamps, 2mA DC

IDD4 $129.00 Dual Input, DCV and DCmV 2V/50mV DC

Triple

ITD1 $191.00 Triple DC Volts, 2V DC

ITD2 $191.00 Triple DC mV, 50mV DC

Quad

IQD1 $213.00 Quad DC Volts, 2V DC

IQD2 $213.00 Quad DC-Millivolts, 50mV DC

Single Smart

ISD1 $217.00 Smart DC Volts, High Speed 16 bit, 1, 10, 50, 200, 400, 800Hz update rates. Optimized for 50Hz rejection

ISD2 $217.00 Smart DC Volts, High Speed 16 bit, 1, 10, 60, 240, 480, 960Hz update rates. Optimized for 60Hz rejection

ISD3 $250.00 Smart DC Volts, High Speed 16 bit, 1Hz to 800Hz with dual isolated SSR's. Optimized for 50Hz rejection.

ISD4 $250.00 Smart DC Volts, High Speed 16 bit, 1Hz to 960Hz with dual isolated SSR's. Optimized for 60Hz rejection.

ISD5 $324.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-400Hz. 50Hz rejection.

ISD6 $324.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-480Hz. 60Hz rejection.

ISD7 $380.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-400Hz with dual isolated SSR's. 50Hz rejection.

ISD8 $380.00 Smart DC Volts, High resolution and Accuracy. 24 bit (1 million counts) 1-480Hz with dual isolated SSR's. 60Hz rejection.

ISD9 $287.00 Smart Voltage and Resistance Input

Dual Smart

ISDA $245.00 Smart Dual Input DC Volts, 16 bit, 1Hz to 20Hz update (50 Hz rejection)

ISDB $245.00 Smart Dual Input DC Volts, 16 bit, 1Hz to 20Hz update (60 Hz rejection)

Features of Smart Input Modules

  • On Board Digital Signal Processor
  • High Accuracy Full Scale Non-linearity +/-0.003% (16 bit) or +/- 0.002% (24 bit ) A/D Conversion
  • Ultra stable Voltage Reference 10 ppm/˚C
  • Modules with Single, Dual and Quad Inputs from DCV, Process, Thermocouple, RTD, Potentiometers, Digital, Encoders, Linear Sensors, LVDT, Magnetostrictive, Load Cells and Pressure Sensors.
  • Up to two on board SSR's on some modules
  • FREE Configuration Utility to set up averaging, sample rates, channel assignments, etc.

Frequency

Single

IF06 $133.00 Line Frequency, 60-600V AC UL

IF10 $98.00 Universal Frequency / RPM / UP DOWN Counter

Dual

IDF2 $152.00 Dual Frequency

LVDT

Dual

ISL1 $389.00 Smart Dual LVDT (50Hz Rejection)

ISL2 $389.00 Smart Dual LVDT (60Hz Rejection)

Linear/Position

Single

IR03 $75.00 Linear Potentiometer, 1kΩ min.

Load Cell

Single

ISS1 $238.00 Smart Pressure/Load cell. Standard resolution 16bit (50Hz rejection)

ISS2 $238.00 Smart Pressure/Load cell. Standard resolution 16bit (60Hz rejection)

ISS3 $327.00 Smart Pressure/Load cell. high resolution and accuracy 24bit (50Hz rejection)

ISS4 $327.00 Smart Pressure/Load cell. high resolution and accuracy 24bit (60Hz rejection)

Dual

ISS5 $359.00 Dual Smart Pressure/Load Cell. Standard resolution 16 bit (50Hz rejection)

ISS6 $359.00 Dual Smart Pressure/Load Cell. Standard resolution 16 bit (60Hz rejection)

Triple

ISSC $290.00 Smart Triple Input, Load Cell and two Digital Inputs (Frequency/Counter) Optimized for 50Hz.

ISSD $290.00 Smart Triple Input, Load Cell and two Digital Inputs (Frequenct/Counter) Optimized for 60Hz.

Quad

ISS7 $389.00 Smart Quad Pressure/Load Cell. 50Hz rejection.

ISS8 $389.00 Smart Quad Pressure/Load Cell. 60Hz rejection.

Power

Volts + Amps

IW03 $125.00 DC-Watts, 10V/50mV DC

IW04 $171.00 Single Phase Power, 600V/1A

IW05 $195.00 Single Phase Power, 600V/5A

Pressure

Single

IGYX $241.00 Direct Pressure (Absolute or Differential/Gage) with 2 Digital Inputs.

IGYZ $213.00 Universal Direct Pressure (Absolute or Differential/Gage).

IS01 $108.00 Strain Gage 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS02 $108.00 Pressure 5/10VDC Exc., 20/2mV/V, 4/6-wire

IS03 $115.00 Pressure/Load Cell with AutoCal 5/10VDC Exc., 20/2mV/V, 4-wire

IS04 $105.00 Pressure/Load Cell with External Excitation, 20/2mV/V, 4/6-wire

IS05 $108.00 Pressure/Load Cell, 20/2mV/V, 5/10V Excitation, 4-wire

IS06 $106.00 Pressure/Load Cell External Excitation, 20/2mV/V, 4-wire

Dual

IGYY $294.00 Dual Direct Pressure (Absolute or Differential/Gage).

Process

Single

IP01 $75.00 Process Loop, 4-20mA

IP02 $86.00 Process Loop, 4-20mA with 24VDC Exc

IP03 $86.00 Process Input, 1-5V DC with Offset, 24V Exc

IP06 $86.00 Process Loop, 4-20mA with 24VDC Exc and Autocal

IP09 $75.00 4-20mA with External Lin Table select

IP10 $126.00 Process + 3 Digital Inputs

Dual

IDP1 $133.00 Dual Process Loop, 4-20mA

Triple

ITP1 $191.00 Triple Process Loop, 4-20mA

Quad

IQP1 $213.00 Quad Process Loop, 4-20mA

Resistance

Single

IR01 $75.00 Resistance, 2/3/4-Wire, 200Ω/2kΩ/20kΩ

ISR1 $250.00 Single Smart 3-Wire Potentiometer, 24 bit, 50 Hz

ISR2 $250.00 Single Smart 3-Wire Potentiometer, 24 bit, 60 Hz

Dual

ISR3 $287.00 Smart Dual 3-Wire Potentiometer, 16 bit, 50 Hz

ISR4 $287.00 Smart Dual 3-Wire Potentiometer, 16 bit, 60 Hz

Quad

ISSA $326.00 Smart Quad Potentiometer/ Resistance

Temperature

Single

IT01 $93.00 Thermocouple (J/K/R/S/T/B/N) (Tiger only)

IT02 $93.00 RTD, 100Ω Pt. 2, 3, or 4-wire (Tiger only)

IT12 $93.00 RTD, 120Ω Nickel 2/3/4-wire (Tiger only)

IT13 $93.00 RTD, 10Ω Copper 2/3/4-wire (Tiger only)

Dual

IDT1 $141.00 Dual Thermocouple (J/K/R/S/T/B/N)

IDT2 $152.00 Dual RTD Input, 2/3-wire, 100Ω Pt

IST5 $287.00 Smart Dual RTD with 0.01 degree resolution. 50Hz.

IST6 $287.00 Smart Dual RTD with 0.01 degree resolution. 60Hz.

Triple

IST7 $327.00 Smart Triple RTD with 0.01 degree resolution(50Hz)

IST8 $327.00 Smart Triple RTD with 0.01 degree resolution(60Hz). IST8 is the replacement for ITT2.

ITT1 $191.00 Triple Thermocouple (J/K/R/S/T/B/N)

ITTC $191.00 Triple RTD Platinum 100Ω RTD 4 wire connection

ITTE $213.00 Triple Input- RTD / RTD / Frequency

ITTF $213.00 Triple Input- Thermocouple / 4-20mA / Frequency

ITTG $213.00 Triple Input- Thermocouple / V / Frequency

Quad

IQT2 $213.00 Quad RTD Platinum 100Ω RTD 2 Wire Connection

IQT4 $213.00 Quad RTD Platinum 100Ω RTD 4 Wire connection

IST3 $331.00 Smart Quad Thermocouple. 50Hz.

IST4 $331.00 Smart Quad Thermocouple. 60Hz.

Six

IST1 $331.00 Smart 6 Inputs - 3 RTD's, 2 Process and 1 Digital Input. 50Hz.

IST2 $331.00 Smart 6 Inputs - 3 RTD's, 2 Process and 1 Digital Input. 60Hz.

pH

Single

IH01 $126.00 PH Indication

IH02 $163.00 pH Indication with Automatic Temperature Compensation

special Input

Single

IA05 $118.00 AC-Amps Scaled RMS, 5 Amp AC

void Input

None

IX00 $0.00 Input Omitted. Only applicable to Auto and Manual loader meters.

Custom Configuration

Install custom configuration file - Tiger
Custom Configuration serial#

Custom Display Scaling

Qty Custom digital display scaling within standard ranges

Custom Faceplates and Labels for Meters

Artwork Data Recovery Fee (per serial number)
Add a customer's product code to the meter label.

Custom Legend on non-membrane type faceplate

Custom Meter Descriptor

Engineering Services

$ One time charge to set up configuration file and assign configuration serial number.
$

Input Range Change

Qty Input Range Change from Standard Range shown in BOLD Type. Please specify range when ordering.

Output Custom Scaling

Qty Custom analog output range for digital meters and bargraphs

Small Run Custom Faceplates for Meters and Bargraphs

Produce and install custom faceplate per meter - 1 color
Produce and install custom faceplate per meter - 2 color
Produce and install custom faceplate per meter - 3 color
Produce and install custom faceplate per meter - 4 color
One time charge for custom faceplate design with an assigned serial number. (per serial number)

4" Switchboard Panel Mounting Adapter Plate

Cables and Serial Communications

Cases and Case Accessories

Connectors

Descriptor Adhesive

External DIN Rail Mounting Breakout Box

High Strength Panel Mounting Adapter Kit

Metal Surround and Mounting Kit

NEMA-4X Clear Lockable Water and Dust Proofing Cover

NEMA-4X Panel to Case Seal Adapters

Short Depth 96x48 Remote Displays

Utility Software
